Каталог Stellram твердосплавные цельные фрезы - страница 21

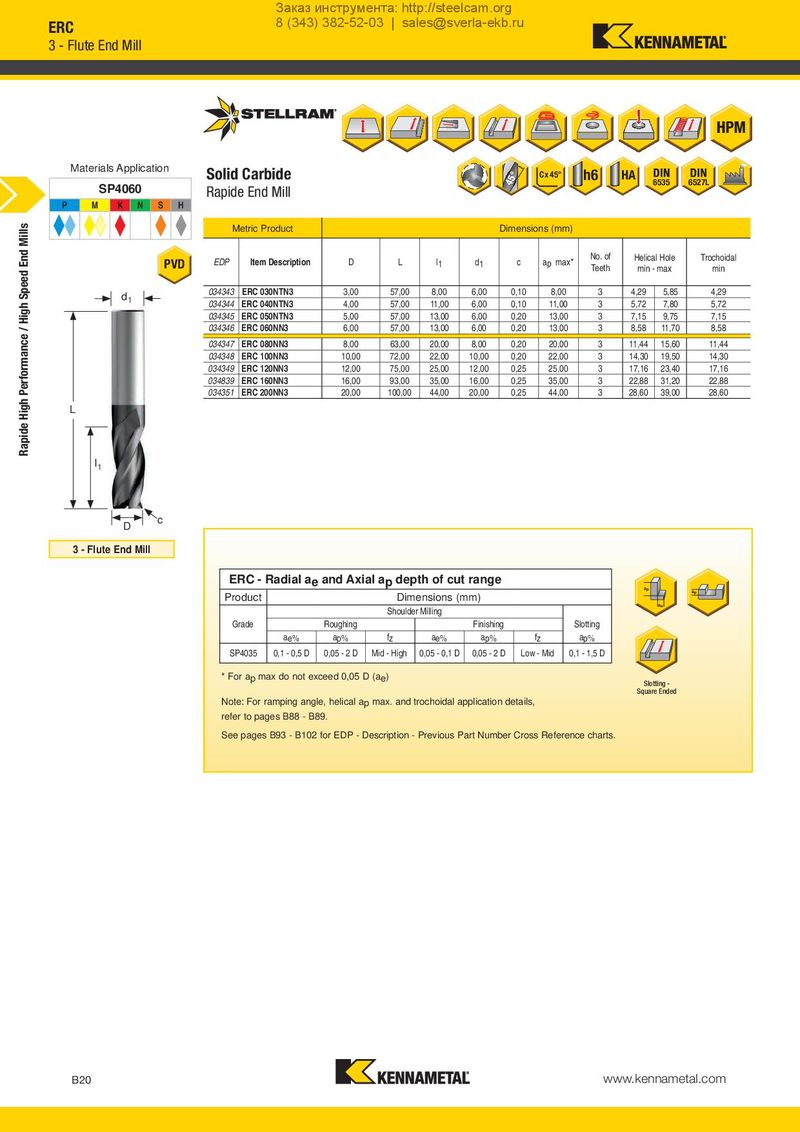

Заказ инструмента: http://steelcam.org ERC 8 (343) 382-52-03 | sales@sverla-ekb.ru 3 - Flute End Mill Materials Application Solid Carbide C x 45° h6 HA SP4060 Rapide End Mill 6535 6527L P M K N S H Rapide High Performance / High Speed End Mills Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 c ap max* No. of Helical Hole Trochoidal Teeth min - max min d1 034343 ERC 030NTN3 3,00 57,00 8,00 6,00 0,10 8,00 3 4,29 5,85 4,29 034344 ERC 040NTN3 4,00 57,00 11,00 6,00 0,10 11,00 3 5,72 7,80 5,72 034345 ERC 050NTN3 5,00 57,00 13,00 6,00 0,20 13,00 3 7,15 9,75 7,15 034346 ERC 060NN3 6,00 57,00 13,00 6,00 0,20 13,00 3 8,58 11,70 8,58 034347 ERC 080NN3 8,00 63,00 20,00 8,00 0,20 20,00 3 11,44 15,60 11,44 034348 ERC 100NN3 10,00 72,00 22,00 10,00 0,20 22,00 3 14,30 19,50 14,30 034349 ERC 120NN3 12,00 75,00 25,00 12,00 0,25 25,00 3 17,16 23,40 17,16 034839 ERC 160NN3 16,00 93,00 35,00 16,00 0,25 35,00 3 22,88 31,20 22,88 034351 ERC 200NN3 20,00 100,00 44,00 20,00 0,25 44,00 3 28,60 39,00 28,60 L I1 D c 3 - Flute End Mill ERC - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ap Shoulder Milling ae Grade Roughing Finishing Slotting ae% ap% fz ae% ap% fz ap% SP4035 0,1 - 0,5 D 0,05 - 2 D Mid - High 0,05 - 0,1 D 0,05 - 2 D Low - Mid 0,1 - 1,5 D * For ap max do not exceed 0,05 D (ae) Slotting - Square Ended Note: For ramping angle, helical ap max. and trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B20 www.kennametal.com
