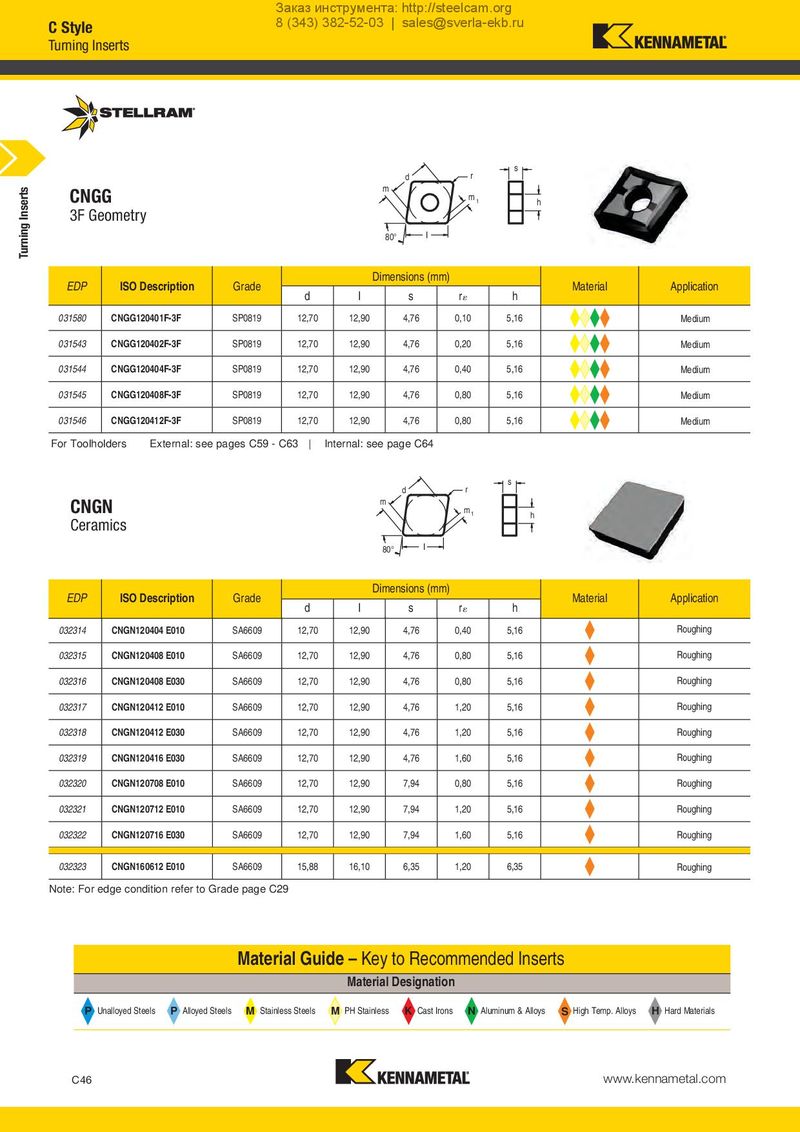

Заказ инструмента: http://steelcam.org C Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Turning Inserts d r s Turning Inserts CNGG m m1 h 3F Geometry 80° I EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 031580 CNGG120401F-3F SP0819 12,70 12,90 4,76 0,10 5,16 Medium 031543 CNGG120402F-3F SP0819 12,70 12,90 4,76 0,20 5,16 Medium 031544 CNGG120404F-3F SP0819 12,70 12,90 4,76 0,40 5,16 Medium 031545 CNGG120408F-3F SP0819 12,70 12,90 4,76 0,80 5,16 Medium 031546 CNGG120412F-3F SP0819 12,70 12,90 4,76 0,80 5,16 Medium For Toolholders External: see pages C59 - C63 | Internal: see page C64 d r s CNGN m m1 Ceramics h 80° I EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032314 CNGN120404 E010 SA6609 12,70 12,90 4,76 0,40 5,16 Roughing 032315 CNGN120408 E010 SA6609 12,70 12,90 4,76 0,80 5,16 Roughing 032316 CNGN120408 E030 SA6609 12,70 12,90 4,76 0,80 5,16 Roughing 032317 CNGN120412 E010 SA6609 12,70 12,90 4,76 1,20 5,16 Roughing 032318 CNGN120412 E030 SA6609 12,70 12,90 4,76 1,20 5,16 Roughing 032319 CNGN120416 E030 SA6609 12,70 12,90 4,76 1,60 5,16 Roughing 032320 CNGN120708 E010 SA6609 12,70 12,90 7,94 0,80 5,16 Roughing 032321 CNGN120712 E010 SA6609 12,70 12,90 7,94 1,20 5,16 Roughing 032322 CNGN120716 E030 SA6609 12,70 12,90 7,94 1,60 5,16 Roughing 032323 CNGN160612 E010 SA6609 15,88 16,10 6,35 1,20 6,35 Roughing Note: For edge condition refer to Grade page C29 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials C46 www.kennametal.com
