Каталог Stellram токарный инструмент - страница 281

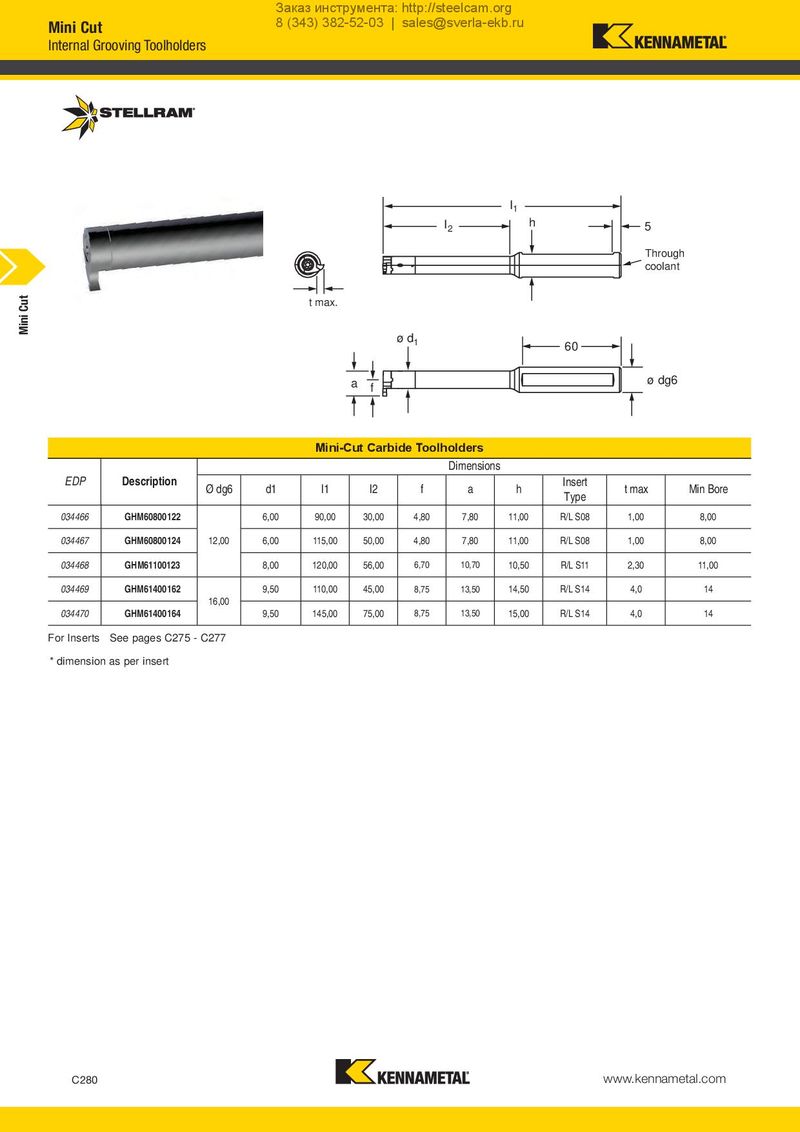

Заказ инструмента: http://steelcam.org Mini Cut 8 (343) 382-52-03 | sales@sverla-ekb.ru Internal Grooving Toolholders I1 I2 h 5 Through coolant Mini Cut t max. ø d1 60 a f ø dg6 Mini-Cut Carbide Toolholders Dimensions EDP Description Ø dg6 d1 l1 l2 f a h Insert t max Min Bore Type 034466 GHM60800122 6,00 90,00 30,00 4,80 7,80 11,00 R/L S08 1,00 8,00 034467 GHM60800124 12,00 6,00 115,00 50,00 4,80 7,80 11,00 R/L S08 1,00 8,00 034468 GHM61100123 8,00 120,00 56,00 6,70 10,70 10,50 R/L S11 2,30 11,00 034469 GHM61400162 9,50 110,00 45,00 8,75 13,50 14,50 R/L S14 4,0 14 16,00 034470 GHM61400164 9,50 145,00 75,00 8,75 13,50 15,00 R/L S14 4,0 14 For Inserts See pages C275 - C277 * dimension as per insert C280 www.kennametal.com
