Каталог Stellram токарный инструмент - страница 273

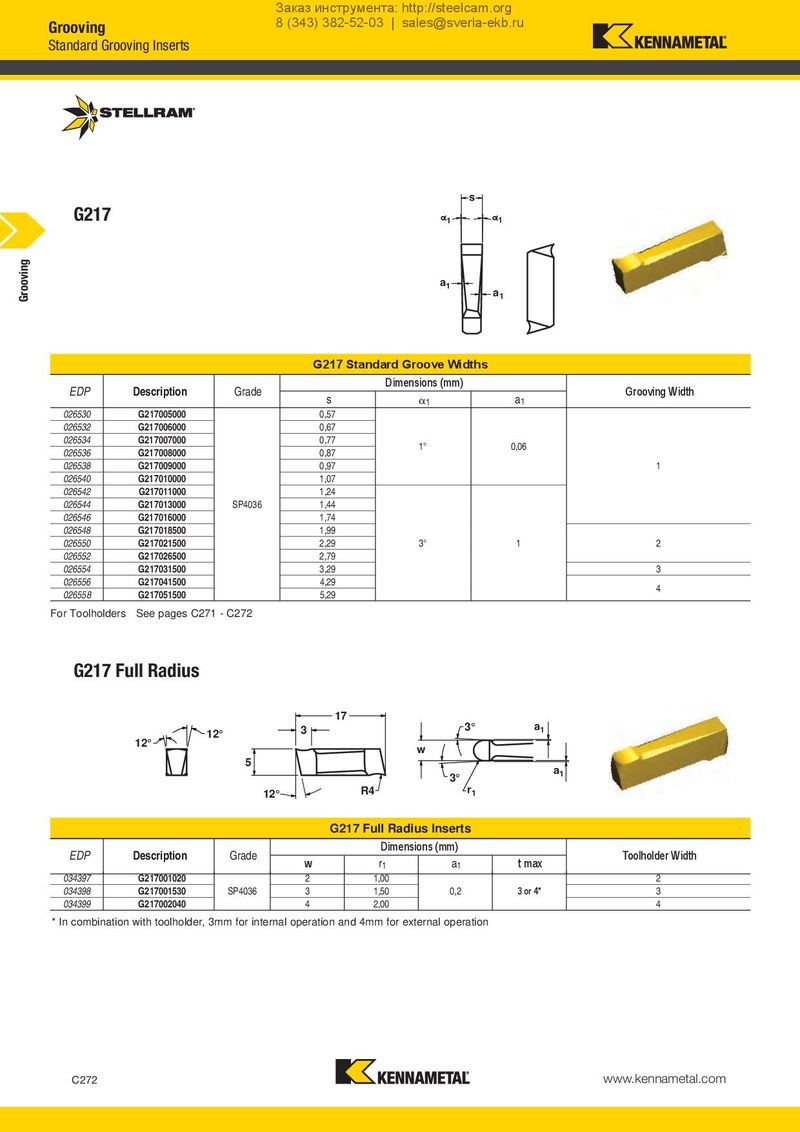

Заказ инструмента: http://steelcam.org Grooving 8 (343) 382-52-03 | sales@sverla-ekb.ru Standard Grooving Inserts s G217 1 1 Grooving a1 a1 G217 Standard Groove Widths EDP Description Grade Dimensions (mm) Grooving Width s 1 a1 026530 G217005000 0,57 026532 G217006000 0,67 026534 G217007000 0,77 1° 0,06 026536 G217008000 0,87 026538 G217009000 0,97 1 026540 G217010000 1,07 026542 G217011000 1,24 026544 G217013000 SP4036 1,44 026546 G217016000 1,74 026548 G217018500 1,99 026550 G217021500 2,29 3° 1 2 026552 G217026500 2,79 026554 G217031500 3,29 3 026556 G217041500 4,29 4 026558 G217051500 5,29 For Toolholders See pages C271 - C272 G217 Full Radius 17 12° 3 3° a1 12° w 5 a1 3° 12° R4 r1 G217 Full Radius Inserts EDP Description Grade Dimensions (mm) Toolholder Width w r1 a1 t max 034397 G217001020 2 1,00 2 034398 G217001530 SP4036 3 1,50 0,2 3 or 4* 3 034399 G217002040 4 2,00 4 * In combination with toolholder, 3mm for internal operation and 4mm for external operation C272 www.kennametal.com
