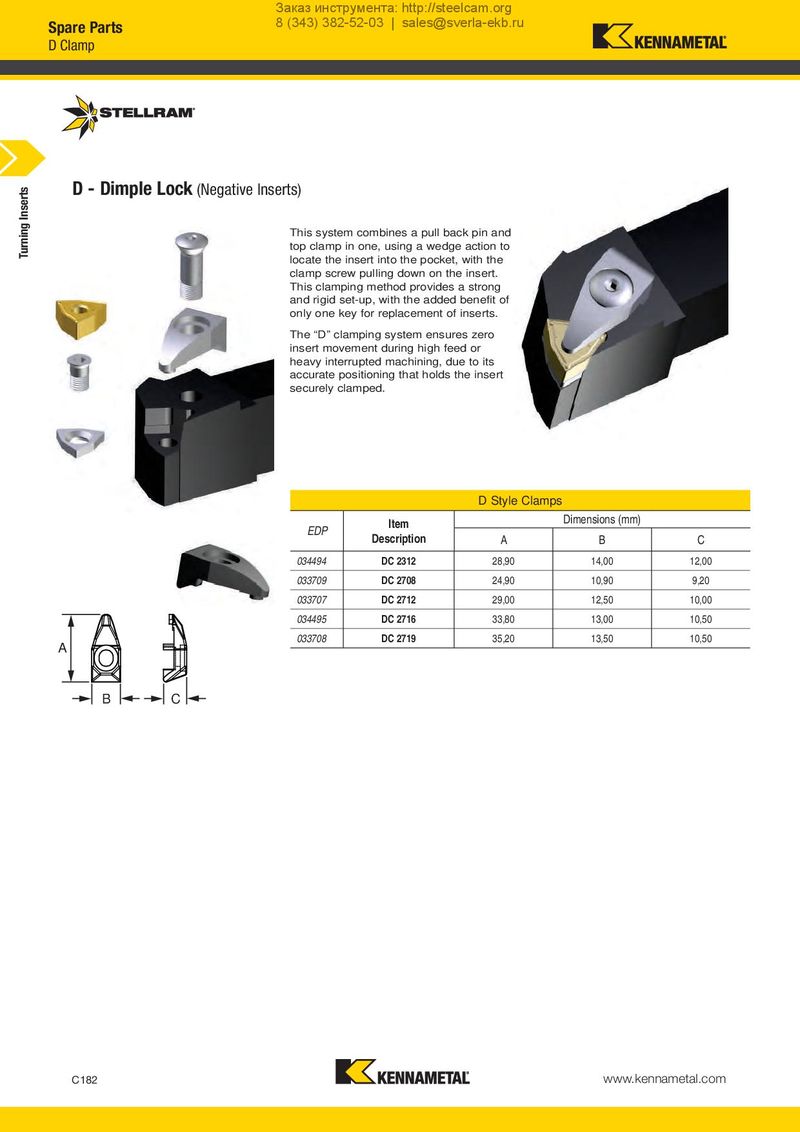

Заказ инструмента: http://steelcam.org Spare Parts 8 (343) 382-52-03 | sales@sverla-ekb.ru D Clamp Turning Inserts D - Dimple Lock (Negative Inserts) This system combines a pull back pin and top clamp in one, using a wedge action to locate the insert into the pocket, with the clamp screw pulling down on the insert. This clamping method provides a strong and rigid set-up, with the added benefit of only one key for replacement of inserts. The “D” clamping system ensures zero insert movement during high feed or heavy interrupted machining, due to its accurate positioning that holds the insert securely clamped. D Style Clamps EDP Item Dimensions (mm) Description A B C 034494 DC 2312 28,90 14,00 12,00 033709 DC 2708 24,90 10,90 9,20 033707 DC 2712 29,00 12,50 10,00 034495 DC 2716 33,80 13,00 10,50 A 033708 DC 2719 35,20 13,50 10,50 B C C182 www.kennametal.com
