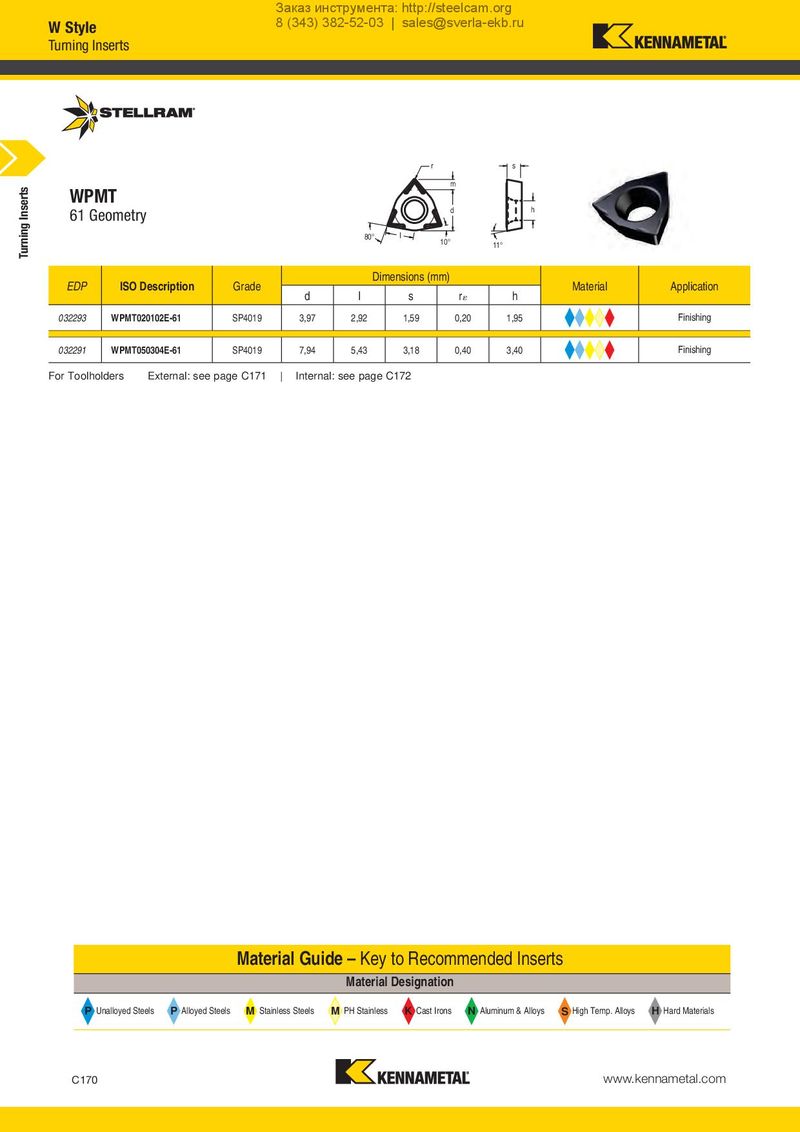

Заказ инструмента: http://steelcam.org W Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Turning Inserts r s Turning Inserts m WPMT 61 Geometry d h 80° I 10° 11° EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032293 WPMT020102E-61 SP4019 3,97 2,92 1,59 0,20 1,95 Finishing 032291 WPMT050304E-61 SP4019 7,94 5,43 3,18 0,40 3,40 Finishing For Toolholders External: see page C171 | Internal: see page C172 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials C170 www.kennametal.com
