Каталог Stellram токарный инструмент - страница 162

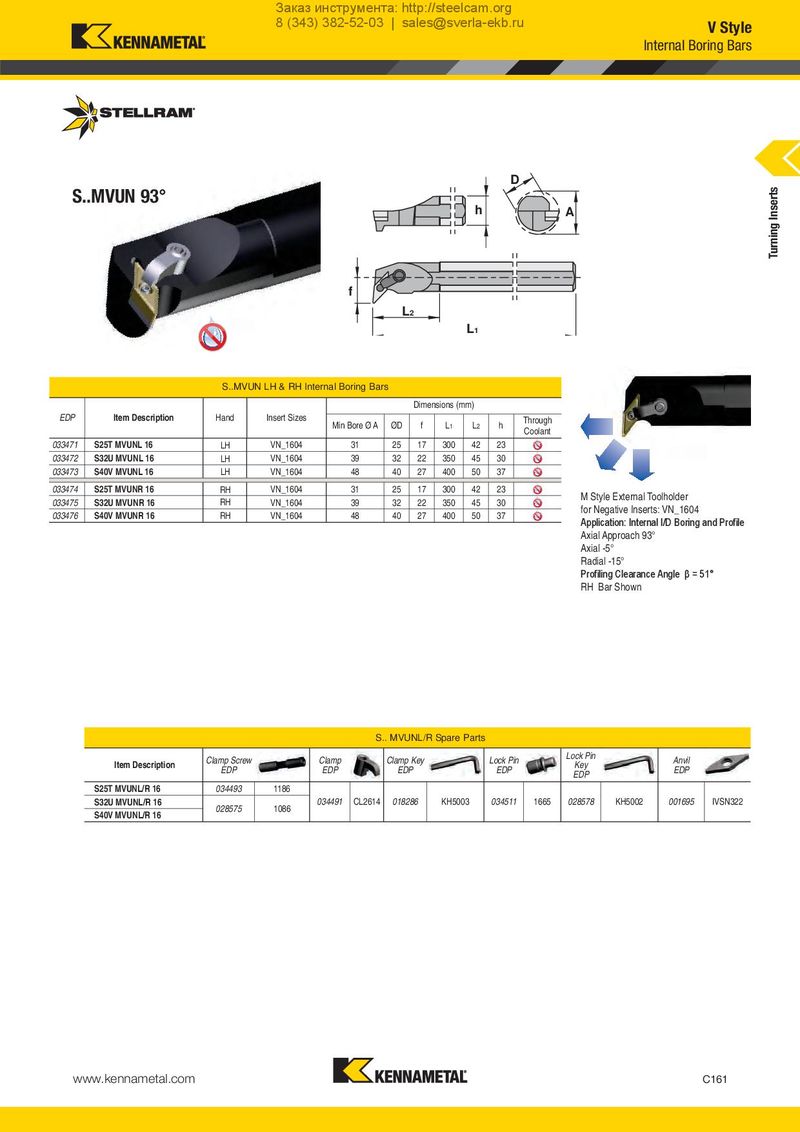

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru V Style Internal Boring Bars D S..MVUN 93° h Turning Inserts A f L2 L1 S..MVUN LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 h Through Coolant 033471 S25T MVUNL 16 LH VN_1604 31 25 17 300 42 23 033472 S32U MVUNL 16 LH VN_1604 39 32 22 350 45 30 033473 S40V MVUNL 16 LH VN_1604 48 40 27 400 50 37 033474 S25T MVUNR 16 RH VN_1604 31 25 17 300 42 23 M Style External Toolholder 033475 S32U MVUNR 16 RH VN_1604 39 32 22 350 45 30 for Negative Inserts: VN_1604 033476 S40V MVUNR 16 RH VN_1604 48 40 27 400 50 37 Application: Internal I/D Boring and Profile Axial Approach 93° Axial -5° Radial -15° Profiling Clearance Angle β = 51° RH Bar Shown S.. MVUNL/R Spare Parts Clamp Screw Clamp Clamp Key Lock Pin Lock Pin Anvil Item Description EDP EDP EDP EDP Key EDP EDP S25T MVUNL/R 16 034493 1186 S32U MVUNL/R 16 028575 1086 034491 CL2614 018286 KH5003 034511 1665 028578 KH5002 001695 IVSN322 S40V MVUNL/R 16 www.kennametal.com C161
