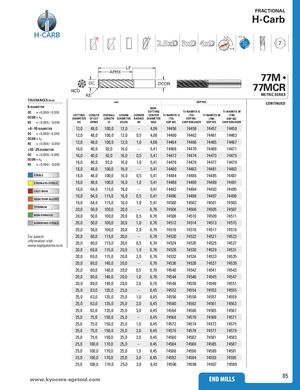

FRACTIONAL 77 H-Carb H-CARB POS 7 ≠ LF APMX 77M • DC DCONNCD 77MCR RE METRIC SERIES TOLERANCES (mm) mm EDP NO. CONTINUED 6 DIAMETER NON- DC = +0,000/–0,030 CUTTING TI-NAMITE-A TI-NAMITE-M CUTTING LENGTH OVERALL SHANK CORNER CENTER TI-NAMITE-A (TA) TI-NAMITE-M (TM) DCON = h6 DIAMETER OF CUT LENGTH DIAMETER RADIUS DIAMETER (TA) EDP NO. (TM) EDP NO. RE = +0,000 / -0,050 DC APMX LF DCON RE NCD EDP NO. CHIP BREAKER EDP NO. CHIP BREAKER >6–10 DIAMETER 12,0 48,0 100,0 12,0 – 4,06 74456 74458 74457 74459 DC = +0,000/–0,040 12,0 48,0 100,0 12,0 0,5 4,06 74460 74462 74461 74463 DCON = h6RE= +0,000 / -0,050 12,0 48,0 100,0 12,0 1,0 4,06 74464 74466 74465 74467 >10–25 DIAMETER 16,0 40,0 92,0 16,0 – 5,41 74468 74470 74469 74471 DC = +0,000/–0,050 16,0 40,0 92,0 16,0 0,5 5,41 74472 74474 74473 74475 DCON = h6RE= +0,000 / -0,050 16,0 40,0 92,0 16,0 1,0 5,41 74476 74478 74477 74479 16,0 48,0 100,0 16,0 – 5,41 74480 74482 74481 74483 STEELS 16,0 48,0 100,0 16,0 0,5 5,41 74484 74486 74485 74487 STAINLESS STEELS 16,0 48,0 100,0 16,0 1,0 5,41 74488 74490 74489 74491 CAST IRON 16,0 64,0 115,0 16,0 – 5,41 74492 74494 74493 74495 16,0 64,0 115,0 16,0 0,5 5,41 74496 74498 74497 74499 HIGH TEMP ALLOYS 16,0 64,0 115,0 16,0 1,0 5,41 74500 74502 74501 74503 TITANIUM 20,0 50,0 100,0 20,0 – 6,76 74504 74506 74505 74507 NON-FERROUS 20,0 50,0 100,0 20,0 0,5 6,76 74508 74510 74509 74511 HARDENED STEELS 20,0 50,0 100,0 20,0 1,0 6,76 74512 74514 74513 74515 20,0 50,0 100,0 20,0 2,0 6,76 74516 74518 74517 74519 For patent 20,0 60,0 115,0 20,0 – 6,76 74520 74522 74521 74523 information visitwww.ksptpatents.com20,0 60,0 115,0 20,0 0,5 6,76 74524 74526 74525 74527 20,0 60,0 115,0 20,0 1,0 6,76 74528 74530 74529 74531 20,0 60,0 115,0 20,0 2,0 6,76 74532 74534 74533 74535 20,0 80,0 140,0 20,0 – 6,76 74536 74538 74537 74539 20,0 80,0 140,0 20,0 0,5 6,76 74540 74542 74541 74543 20,0 80,0 140,0 20,0 1,0 6,76 74544 74546 74545 74547 20,0 80,0 140,0 20,0 2,0 6,76 74548 74550 74549 74551 25,0 63,0 135,0 25,0 – 8,45 74552 74554 74553 74555 25,0 63,0 135,0 25,0 1,0 8,45 74556 74558 74557 74559 25,0 63,0 135,0 25,0 2,0 8,45 74560 74562 74561 74563 25,0 63,0 135,0 25,0 3,0 8,45 74564 74566 74565 74567 25,0 75,0 150,0 25,0 – 8,45 74568 74570 74569 74571 25,0 75,0 150,0 25,0 1,0 8,45 74572 74574 74573 74575 25,0 75,0 150,0 25,0 2,0 8,45 74576 74578 74577 74579 25,0 75,0 150,0 25,0 3,0 8,45 74580 74582 74581 74583 25,0 100,0 170,0 25,0 – 8,45 74584 74586 74585 74587 25,0 100,0 170,0 25,0 1,0 8,45 74588 74590 74589 74591 25,0 100,0 170,0 25,0 2,0 8,45 74592 74594 74593 74595 25,0 100,0 170,0 25,0 3,0 8,45 74596 74598 74597 74599 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 85
