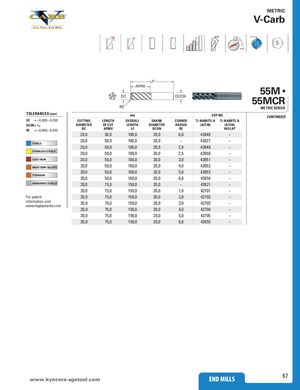

Общий каталог SGS 2021 - страница 67

METRIC V-Carb 45° POS 5 ≠ LF APMX 55M • DC DCON 55MCR RE METRIC SERIES TOLERANCES (mm) mm EDP NO. CONTINUED DC = +0,000/–0,050 CUTTING LENGTH OVERALL SHANK CORNER Ti-NAMITE-A Ti-NAMITE-A DCON = h6 DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) (AlTiN) RE = +0,000/–0,050 DC APMX LF DCON RE W/FLAT 20,0 38,0 100,0 20,0 6,0 42648 – 20,0 50,0 100,0 20,0 – 42627 – STEELS 20,0 50,0 100,0 20,0 2,0 42649 – STAINLESS STEELS 20,0 50,0 100,0 20,0 2,5 42650 – CAST IRON 20,0 50,0 100,0 20,0 3,0 42651 – HIGH TEMP ALLOYS 20,0 50,0 100,0 20,0 4,0 42652 – 20,0 50,0 100,0 20,0 5,0 42653 – TITANIUM 20,0 50,0 100,0 20,0 6,0 42654 – HARDENED STEELS 20,0 75,0 150,0 20,0 – 42621 – 20,0 75,0 150,0 20,0 1,0 42701 – For patent 20,0 75,0 150,0 20,0 2,0 42702 – information visitwww.ksptpatents.com20,0 75,0 150,0 20,0 3,0 42703 – 20,0 75,0 150,0 20,0 4,0 42704 – 20,0 75,0 150,0 20,0 5,0 42705 – 20,0 75,0 150,0 20,0 6,0 42655 – www.kyocerEaN-DsgMstILoLoSl.com END MILLS 67
