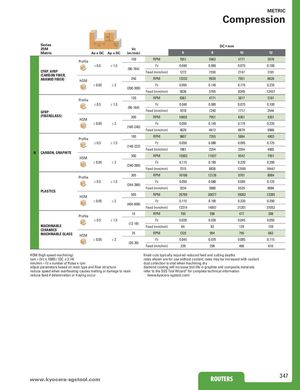

METRIC Compression Ap Series Ae Ae DC • mm 25M Vc Metric Ae x DC Ap x DC (m/min) 6 8 10 12 Profile 150 RPM 7951 5963 4771 3976 ≤ 0.5 ≤ 1.5 Fz 0.040 0.065 0.075 0.100 CFRP, AFRP (96-164) Feed (mm/min) 1272 1550 2147 3181 (CARBON FIBER, ARAMID FIBER) HSM 250 RPM 13252 9939 7951 6626 ≤ 0.05 ≤2 Fz 0.095 0.145 0.175 0.235 (200-300) Feed (mm/min) 5036 5765 8349 12457 Profile 120 RPM 6361 4771 3817 3181 ≤ 0.5 ≤ 1.5 Fz 0.040 0.065 0.075 0.100 (96-164) GFRP Feed (mm/min) 1018 1240 1717 2544 (FIBERGLASS) HSM 200 RPM 10602 7951 6361 5301 ≤ 0.05 ≤2 Fz 0.095 0.145 0.175 0.235 (160-240) Feed (mm/min) 4029 4612 6679 9966 Profile 185 RPM 9807 7355 5884 4903 ≤ 0.5 ≤ 1.5 Fz 0.050 0.080 0.095 0.125 (148-222) Feed (mm/min) 1961 2354 3354 4903 N CARBON, GRAPHITE HSM 300 RPM 15903 11927 9542 7951 ≤ 0.05 ≤2 Fz 0.115 0.185 0.220 0.290 (240-360) Feed (mm/min) 7315 8826 12595 18447 Profile 305 RPM 16168 12126 9701 8084 ≤ 0.5 ≤ 1.5 Fz 0.050 0.080 0.095 0.125 (244-366) Feed (mm/min) 3234 3880 5529 8084 PLASTICS HSM 505 RPM 26769 20077 16062 13385 ≤ 0.05 ≤2 Fz 0.115 0.185 0.220 0.290 (404-606) Feed (mm/min) 12314 14857 21201 31052 Profile 15 RPM 795 596 477 398 ≤ 0.5 ≤ 1.5 Fz 0.020 0.035 0.045 0.050 MACHINABLE (12-18) Feed (mm/min) 64 83 129 159 CERAMICS MACHINABLE GLASS HSM 25 RPM 1325 994 795 663 ≤ 0.05 ≤2 Fz 0.045 0.075 0.085 0.115 (20-30) Feed (mm/min) 239 298 406 610 HSM (high speed machining) finish cuts typically required reduced feed and cutting depths rpm = (Vc x 1000) / (DC x 3.14) rates shown are for use without coolant; rates may be increased with coolant mm/min = Fz x number of flutes x rpm dust collection is vital when machining dry adjust parameters based on resin type and fiber structure diamond coating will increase tool life in graphite and composite materials reduce speed when overheating causes melting or damage to resin refer to the SGS Tool Wizard® for complete technical information reduce feed if delamination or fraying occur   (www.kyocera-sgstool.com) www.kyocerRaO-sUgTsEtRoSol.com ROUTERS 347
