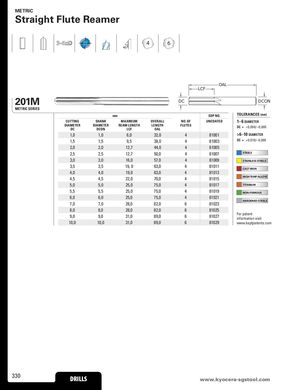

METRIC Straight Flute Reamer 4 6 45° OAL LCF 201M DC DCON METRIC SERIES mm EDP NO. TOLERANCES (mm) CUTTING SHANK MAXIMUM OVERALL NO. OF UNCOATED 1–6 DIAMETER DIAMETER DIAMETER REAM LENGTH LENGTH FLUTESDCDCONLCFOAL DC = +0,008/–0,000 1,0 1,0 6,0 32,0 4 81001 >6–10 DIAMETER 1,5 1,5 9,5 38,0 4 81003 DC = + 0, 010 / – 0, 0 0 0 2,0 2,0 12,7 44,0 4 81005 2,5 2,5 12,7 50,0 4 81007 STEELS 3,0 3,0 16,0 57,0 4 81009 STAINLESS STEELS 3,5 3,5 19, 0 63,0 4 81011 CAST IRON 4,0 4,0 19,0 63,0 4 81013 4,5 4,5 22,0 70,0 4 81015 HIGH TEMP ALLOYS 5,0 5,0 25,0 75,0 4 81017 TITANIUM 5,5 5,5 25,0 75,0 4 81019 NON-FERROUS 6,0 6,0 25,0 75,0 4 81021 HARDENED STEELS 7,0 7,0 28,0 82,0 6 81023 8,0 8,0 28,0 82,0 6 81025 9,0 9,0 31,0 89,0 6 81027 For patentinformation visit 10,0 10,0 31,0 89,0 6 81029 www.ksptpatents.com 330 DRILLS www.kDyRoIcLeLrSa-sgstool.com
