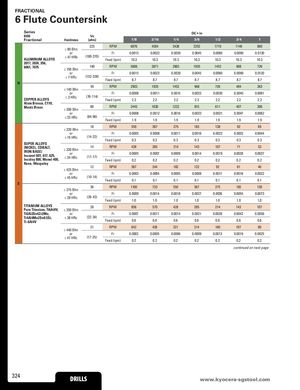

FRACTIONAL 6 Flute Countersink Series DC • in 606 Vc Fractional Hardness (sfm) 1/8 3/16 1/4 3/8 1/2 3/4 1 225 RPM 6876 4584 3438 2292 1719 1146 860 ≤ 80 Bhn or Fr 0.0015 0.0022 0.0030 0.0045 0.0060 0.0090 0.0120 ALUMINUM ALLOYS ≤ 47 HRb (180-270) Feed (ipm) 10.3 10.3 10.3 10.3 10.3 10.3 10.3 2017, 2024, 356, 6061, 7075 190 RPM 5806 3871 2903 1935 1452 968 726≤ 150 Bhn or Fr 0.0015 0.0022 0.0030 0.0045 0.0060 0.0090 0.0120 ≤ 7 HRc (152-228) Feed (ipm) 8.7 8.7 8.7 8.7 8.7 8.7 8.7 N 95 RPM 2903 1935 1452 968 726 484 363 ≤ 140 Bhn or Fr 0.0008 0.0011 0.0015 0.0023 0.0030 0.0045 0.0061 COPPER ALLOYS ≤ 3 HRc (76-114) Feed (ipm) 2.2 2.2 2.2 2.2 2.2 2.2 2.2 Alum Bronze, C110, Muntz Brass 80 RPM 2445 1630 1222 815 611 407 306≤ 200 Bhn or Fr 0.0008 0.0012 0.0016 0.0023 0.0031 0.0047 0.0062 ≤ 23 HRc (64-96) Feed (ipm) 1.9 1.9 1.9 1.9 1.9 1.9 1.9 18 RPM 550 367 275 183 138 92 69 ≤ 220 Bhn or Fr 0.0005 0.0008 0.0011 0.0016 0.0022 0.0033 0.0044 ≤ 19 HRc (14-22) Feed (ipm) 0.3 0.3 0.3 0.3 0.3 0.3 0.3 SUPER ALLOYS (NICKEL, COBALT,IRON BASE)Inconel 601, 617, 625,Incoloy 800, Monel 400,≤ 320 Bhnor≤ 34 HRc14(11-17)RPMFrFeed (ipm)4280.00050.22850.00070.22140.00090.21430.00140.21070.00190.2710.00280.2530.00370.2 Rene, Waspaloy 12 RPM 367 244 183 122 92 61 46 ≤ 425 Bhn or Fr 0.0003 0.0004 0.0005 0.0008 0.0011 0.0016 0.0022 ≤ 45 HRc (10-14) Feed (ipm) 0.1 0.1 0.1 0.1 0.1 0.1 0.1 S 36 RPM 1100 733 550 367 275 183 138 ≤ 275 Bhn or Fr 0.0009 0.0014 0.0018 0.0027 0.0036 0.0055 0.0073 ≤ 28 HRc (29-43) Feed (ipm) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 TITANIUM ALLOYS 28 RPM 856 570 428 285 214 143 107 Pure Titanium, Ti6Al4V, ≤ 350 Bhn Ti6Al2Sn4Zr2Mo, or Fr 0.0007 0.0011 0.0014 0.0021 0.0028 0.0042 0.0056 Ti4Al4Mo2Sn0.5Si, ≤ 38 HRc (22-34) Ti-6Al4V Feed (ipm) 0.6 0.6 0.6 0.6 0.6 0.6 0.6 ≤ 440 Bhn 21 RPM 642 428 321 214 160 107 80 or Fr 0.0003 0.0005 0.0006 0.0009 0.0012 0.0019 0.0025 ≤ 47 HRc (17-25) Feed (ipm) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 continued on next page 324 DRILLS www.kDyRoIcLeLrSa-sgstool.com
