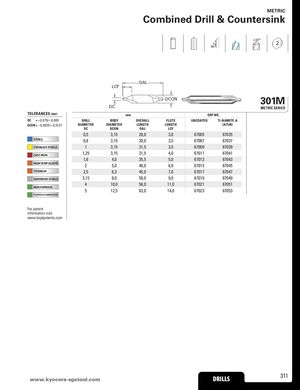

METRIC Combined Drill & Countersink 118° 2 60° OAL LCF DCON 301M DC METRIC SERIES TOLERANCES (mm) mm EDP NO. DC = +0,076/–0,000 DRILL BODY OVERALL FLUTE UNCOATED Ti-NAMITE-A DCON = –0,0025/–0,0127 DIAMETER DIAMETER LENGTH LENGTH (AlTiN) DC DCON OAL LCF 0,5 3,15 20,0 3,0 67005 67035 STEELS 0,8 3,15 20,0 3,5 67007 67037 STAINLESS STEELS 1 3,15 31,5 3,5 67009 67039 CAST IRON 1,25 3,15 31,5 4,0 67011 67041 1,6 4,0 35,5 5,0 67013 67043 HIGH TEMP ALLOYS 2 5,0 40,0 6,0 67015 67045 TITANIUM 2,5 6,3 45,0 7,0 67017 67047 HARDENED STEELS 3,15 8,0 50,0 9,0 67019 67049 4 10,0 56,0 11,0 67021 67051 NON-FERROUS 5 12,5 63,0 14,0 67023 67053 PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com www.kyoceraD-sRgILsLtoSol.com DRILLS 311
