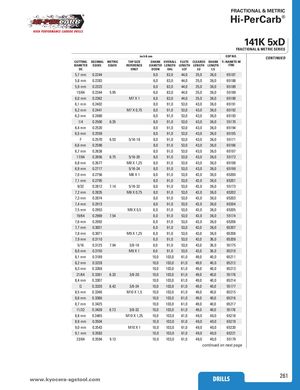

FRACTIONAL & METRIC Hi-PerCarb® 141K 5xD FRACTIONAL & METRIC SERIES inch & mm EDP NO. CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-M DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (TM) DC ONLY DCON OAL LCF LU LS 5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 65187 5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 65188 5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 65189 15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 55169 6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 65190 6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 65191 6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 65192 6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 65193 1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 55170 6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 65194 6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 65195 F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 55171 6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 65196 6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 65197 17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 55172 6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 65198 6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 65199 7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 65200 7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 65201 9/32 0.2812 7.14 5/16-32 8,0 91,0 53,0 43,0 36,0 55173 7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 65202 7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 65203 7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 65204 7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 65205 19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 55174 7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 65206 7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 65207 7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 65208 7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 65209 5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 55175 8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 65210 8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 65211 8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 65212 8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 65213 21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 55176 8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 65214 Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 55177 8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 65215 8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 65216 8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 65217 11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 55178 8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 65218 8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 65219 9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 65220 9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 65221 23/64 0.3594 9.13 10,0 103,0 61,0 49,0 40,0 55179 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 261
