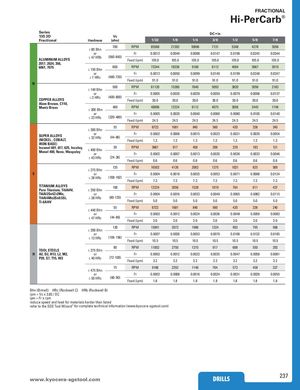

Общий каталог SGS 2021 - страница 237

FRACTIONAL Hi-PerCarb® Series DC • in 135 3D Vc Fractional Hardness (sfm) 1/32 1/8 1/4 3/8 1/2 5/8 7/8 700 RPM 85568 21392 10696 7131 5348 4278 3056 ≤ 80 Bhn or Fr 0.0012 0.0049 0.0098 0.0147 0.0196 0.0245 0.0344 ALUMINUM ALLOYS ≤ 47 HRb (560-840) Feed (ipm) 105.0 105.0 105.0 105.0 105.0 105.0 105.0 2017, 2024, 356, 6061, 7075 600 RPM 73344 18336 9168 6112 4584 3667 2619≤ 150 Bhn or Fr 0.0012 0.0050 0.0099 0.0149 0.0199 0.0248 0.0347 ≤ 7 HRc (480-720) Feed (ipm) 91.0 91.0 91.0 91.0 91.0 91.0 91.0 N 500 RPM 61120 15280 7640 5093 3820 3056 2183 ≤ 140 Bhn or Fr 0.0005 0.0020 0.0039 0.0059 0.0079 0.0098 0.0137 COPPER ALLOYS ≤ 3 HRc (400-600) Feed (ipm) 30.0 30.0 30.0 30.0 30.0 30.0 30.0 Alum Bronze, C110, Muntz Brass 400 RPM 48896 12224 6112 4075 3056 2445 1746≤ 200 Bhn or Fr 0.0005 0.0020 0.0040 0.0060 0.0080 0.0100 0.0140 ≤ 23 HRc (320-480) Feed (ipm) 24.5 24.5 24.5 24.5 24.5 24.5 24.5 55 RPM 6723 1681 840 560 420 336 240 ≤ 300 Bhn SUPER ALLOYS(NICKEL , COBALT, or Fr 0.0002 0.0008 0.0015 0.0023 0.0031 0.0039 0.0054≤ 32 HRc(44-66)Feed (ipm)1.31.31.31.31.31.31.3 IRON BASE) Inconel 601, 617, 625, Incoloy,Monel 400, Rene, Waspaloy≤ 400 Bhnor30RPM 3667 917 458 306 229 183 131Fr0.00020.00070.00130.00200.00260.00330.0046 ≤ 43 HRc (24-36) Feed (ipm) 0.6 0.6 0.6 0.6 0.6 0.6 0.6 135 RPM 16502 4126 2063 1375 1031 825 589 ≤ 275 Bhn S or Fr 0.0004 0.0018 0.0035 0.0053 0.0071 0.0088 0.0124 ≤ 28 HRc (108-162) Feed (ipm) 7.3 7.3 7.3 7.3 7.3 7.3 7.3 TITANIUM ALLOYS 100 RPM 12224 3056 1528 1019 764 611 437 Pure Titanium, Ti6Al4V, ≤ 350 Bhn Ti6Al2Sn4Zr2Mo, or Fr 0.0004 0.0016 0.0033 0.0049 0.0065 0.0082 0.0115 Ti4Al4Mo2Sn0.5Si, ≤ 38 HRc (80-120) Ti-6Al4V Feed (ipm) 5.0 5.0 5.0 5.0 5.0 5.0 5.0 55 RPM 6723 1681 840 560 420 336 240 ≤ 440 Bhn or Fr 0.0003 0.0012 0.0024 0.0036 0.0048 0.0059 0.0083 ≤ 47 HRc (44-66) Feed (ipm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 130 RPM 15891 3973 1986 1324 993 795 568 ≤ 200 Bhn or Fr 0.0007 0.0026 0.0053 0.0079 0.0106 0.0132 0.0185 ≤ 13 HRc (104-156) Feed (ipm) 10.5 10.5 10.5 10.5 10.5 10.5 10.5 90 RPM 11002 2750 1375 917 688 550 393 TOOL STEELS ≤ 375 Bhn H A2, D2, H13, L2, M2, or Fr 0.0003 0.0012 0.0023 0.0035 0.0047 0.0058 0.0081 P20, S7, T15, W2 ≤ 40 HRc (72-108) Feed (ipm) 3.2 3.2 3.2 3.2 3.2 3.2 3.2 75 RPM 9168 2292 1146 764 573 458 327 ≤ 475 Bhn or Fr 0.0002 0.0008 0.0016 0.0024 0.0031 0.0039 0.0055 ≤ 50 HRc (60-90) Feed (ipm) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 Bhn (Brinell)  HRc (Rockwell C)  HRb (Rockwell B) rpm = Vc x 3.82 / DC ipm = Fr x rpm reduce speed and feed for materials harder than listed refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com) www.kyoceraD-sRgILsLtoSol.com DRILLS 237
