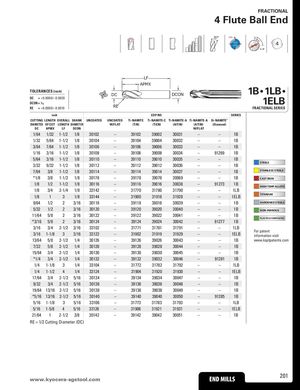

FRACTIONAL 4 Flute Ball End 30° POS 4 ≠ LF APMX TOLERANCES (inch) DC DCON 1B • 1LB •  DC = +0.0000/–0.0020DCON = h6 1ELB RE = +0.0000/–0.0010 RE FRACTIONAL SERIES inch EDP NO. SERIES CUTTING LENGTH OVERALL SHANK UNCOATED UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A Ti-NAMITE-A Di-NAMITE® DIAMETER OF CUT LENGTH DIAMETER W/FLAT (TiN) (TiCN) (AlTiN) (AlTiN) (Diamond) DC APMX LF DCON W/FLAT 1/64 1/32 1-1/2 1/8 30102 – 39102 39002 30031 – – 1B 1/32 5/64 1-1/2 1/8 30104 – 39104 39004 30032 – – 1B 3/64 7/64 1-1/2 1/8 30106 – 39106 39006 30033 – – 1B 1/16 3/16 1-1/2 1/8 30108 – 39108 39008 30034 – 91269 1B 5/64 3/16 1-1/2 1/8 30110 – 39110 39010 30035 – – 1B STEELS 3/32 9/32 1-1/2 1/8 30112 – 39112 39012 30036 – – 1B 7/64 3/8 1-1/2 1/8 30114 – 39114 39014 30037 – – 1B STAINLESS STEELS *1/8 3/8 1-1/2 1/8 30178 – 39178 39078 30069 – – 1B CAST IRON 1/8 1/2 1-1/2 1/8 30116 – 39116 39016 30038 – 91273 1B HIGH TEMP ALLOYS 1/8 3/4 2-1/4 1/8 33142 – 31770 31780 31790 – – 1LB 1/8 1 3 1/8 33144 – 31900 31918 31928 – – 1ELB TITANIUM 9/64 1/2 2 3/16 30118 – 39118 39018 30039 – – 1B HARDENED STEELS 5/32 1/2 2 3/16 30120 – 39120 39020 30040 – – 1B NON-FERROUS 11/64 5/8 2 3/16 30122 – 39122 39022 30041 – – 1B PLASTICS/COMPOSITES *3/16 5/8 2 3/16 30124 – 39124 39024 30042 – 91277 1B 3/16 3/4 2-1/2 3/16 33102 – 31771 31781 31791 – – 1LB 3/16 1-1/8 3 3/16 33122 – 31902 31919 31929 – – 1ELB For patentinformation visit 13/64 5/8 2-1/2 1/4 30126 – 39126 39026 30043 – – 1B www.ksptpatents.com 7/32 5/8 2-1/2 1/4 30128 – 39128 39028 30044 – – 1B 15/64 3/4 2-1/2 1/4 30130 – 39130 39030 30045 – – 1B *1/4 3/4 2-1/2 1/4 30132 – 39132 39032 30046 – 91281 1B 1/4 1-1/8 3 1/4 33104 – 31772 31782 31792 – – 1LB 1/4 1-1/2 4 1/4 33124 – 31904 31920 31930 – – 1ELB 17/64 3/4 2-1/2 5/16 30134 – 39134 39034 30047 – – 1B 9/32 3/4 2-1/2 5/16 30136 – 39136 39036 30048 – – 1B 19/64 13/16 2-1/2 5/16 30138 – 39138 39038 30049 – – 1B *5/16 13/16 2-1/2 5/16 30140 – 39140 39040 30050 – 91285 1B 5/16 1-1/8 3 5/16 33106 – 31773 31783 31793 – – 1LB 5/16 1-5/8 4 5/16 33126 – 31906 31921 31931 – – 1ELB 21/64 1 2-1/2 3/8 30142 – 39142 39042 30051 – – 1B RE = 1/2 Cutting Diameter (DC) www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 201
