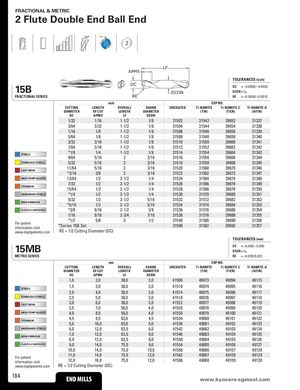

FRACTIONAL & METRIC 2 Flute Double End Ball End 30° POS 2 LF APMX TOLERANCES (inch) 15B DC DC = –0.0000/–0.0020DCONDCON = h6 FRACTIONAL SERIES RE RE = +0.0000/–0.0010 inch EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1/32 1/16 1-1/2 1/8 31502 31542 39652 31337 3/64 3/32 1-1/2 1/8 31504 31544 39654 31338 1/16 1/8 1-1/2 1/8 31506 31546 39656 31339 5/64 1/8 1-1/2 1/8 31508 31548 39658 31340 3/32 3/16 1-1/2 1/8 31510 31550 39660 31341 7/64 3/16 1-1/2 1/8 31512 31552 39662 31342 STEELS *1/8 1/4 1-1/2 1/8 31514 31554 39664 31343 9/64 5/16 2 3/16 31516 31556 39666 31344 STAINLESS STEELS 5/32 5/16 2 3/16 31518 31558 39668 31345 11/64 5/16 2 3/16 31520 31560 39670 31346 CAST IRON *3/16 3/8 2 3/16 31522 31562 39672 31347 HIGH TEMP ALLOYS 13/64 1/2 2-1/2 1/4 31524 31564 39674 31348 7/32 1/2 2-1/2 1/4 31526 31566 39676 31349 TITANIUM 15/64 1/2 2-1/2 1/4 31528 31568 39678 31350 HARDENED STEELS *1/4 1/2 2-1/2 1/4 31530 31570 39680 31351 9/32 1/2 2-1/2 5/16 31532 31572 39682 31352 NON-FERROUS *5/16 1/2 2-1/2 5/16 31534 31574 39684 31353 PLASTICS/COMPOSITES *3/8 9/16 2-1/2 3/8 31536 31576 39686 31354 7/16 9/16 2-3/4 7/16 31538 31578 39688 31355 For patentinformation visit *1/2 5/8*Series 15B Set 3 1/2 31540 31580 39690 3135631590315823969231357 www.ksptpatents.com RE = 1/2 Cutting Diameter (DC) TOLERANCES (mm) 15MB DC = +0,000/–0,050DCON = h6 METRIC SERIES RE = +0,000/0,025 mm EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1,0 2,0 38,0 3,0 41506 49073 49094 49115 1,5 3,0 38,0 3,0 41510 49074 49095 49116 STEELS 2,0 4,0 38,0 3,0 41514 49075 49096 49117 STAINLESS STEELS 2,5 5,0 38,0 3,0 41518 49076 49097 49118 CAST IRON 3,0 6,0 38,0 3,0 41522 49077 49098 49119 3,5 7,0 50,0 4,0 41526 49078 49099 49120 HIGH TEMP ALLOYS 4,0 8,0 50,0 4,0 41530 49079 49100 49121 TITANIUM 4,5 9,5 63,0 4,5 41534 49080 49101 49122 5,0 10,0 63,0 5,0 41538 49081 49102 49123 HARDENED STEELS 6,0 12,0 63,0 6,0 41542 49082 49103 49124 7,0 12,0 63,0 8,0 41546 49083 49104 49125 NON-FERROUS 8,0 12,0 63,0 8,0 41550 49084 49105 49126 PLASTICS/COMPOSITES 9,0 14,0 75,0 9,0 41554 49085 49106 49127 10,0 14,0 75,0 10,0 41558 49086 49107 49128 For patentinformation visit 11,0 14,0 75,0 12,0 41562 49087 49108 4912912,016,075,012,041566490884910949130 www.ksptpatents.com RE = 1/2 Cutting Diameter (DC) 184 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
