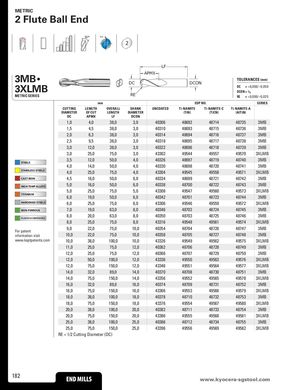

METRIC 2 Flute Ball End 30° POS 2 LF APMX 3MB •  TOLERANCES (mm)DCDCON 3XLMB METRIC SERIES RE DC = +0,000/–0,050DCON = h6RE= +0,000/–0,025 mm EDP NO. SERIES CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1,0 4,0 38,0 3,0 40306 48692 48714 48735 3MB 1,5 4,5 38,0 3,0 40310 48693 48715 48736 3MB 2,0 6,3 38,0 3,0 40314 48694 48716 48737 3MB 2,5 9,5 38,0 3,0 40318 48695 48717 48738 3MB 3,0 12,0 38,0 3,0 40322 48696 48718 48739 3MB 3,0 25,0 75,0 3,0 43302 49544 49557 49570 3XLMB 3,5 12,0 50,0 4,0 40326 48697 48719 48740 3MB STEELS 4,0 14,0 50,0 4,0 40330 48698 48720 48741 3MB STAINLESS STEELS 4,0 25,0 75,0 4,0 43304 49545 49558 49571 3XLMB CAST IRON 4,5 16,0 50,0 6,0 40334 48699 48721 48742 3MB HIGH TEMP ALLOYS 5,0 16,0 50,0 6,0 40338 48700 48722 48743 3MB 5,0 25,0 75,0 5,0 43308 49547 49560 49573 3XLMB TITANIUM 6,0 19,0 50,0 6,0 40342 48701 48723 48744 3MB HARDENED STEELS 6,0 25,0 75,0 6,0 43306 49546 49559 49572 3XLMB NON-FERROUS 7,0 19,0 63,0 8,0 40346 48702 48724 48745 3MB 8,0 20,0 63,0 8,0 40350 48703 48725 48746 3MB PLASTICS/COMPOSITES 8,0 25,0 75,0 8,0 43316 49548 49561 49574 3XLMB For patent 9,0 22,0 75,0 10,0 40354 48704 48726 48747 3MB information visit 10,0 22,0 75,0 10,0 40358 48705 48727 48748 3MB www.ksptpatents.com 10,0 38,0 100,0 10,0 43326 49549 49562 49575 3XLMB 11,0 25,0 75,0 12,0 40362 48706 48728 48749 3MB 12,0 25,0 75,0 12,0 40366 48707 48729 48750 3MB 12,0 50,0 100,0 12,0 43336 49550 49563 49576 3XLMB 12,0 75,0 150,0 12,0 43346 49551 49564 49577 3XLMB 14,0 32,0 89,0 14,0 40370 48708 48730 48751 3MB 14,0 75,0 150,0 14,0 43356 49552 49565 49578 3XLMB 16,0 32,0 89,0 16,0 40374 48709 48731 48752 3MB 16,0 75,0 150,0 16,0 43366 49553 49566 49579 3XLMB 18,0 38,0 100,0 18,0 40378 48710 48732 48753 3MB 18,0 75,0 150,0 18,0 43376 49554 49567 49580 3XLMB 20,0 38,0 100,0 20,0 40382 48711 48733 48754 3MB 20,0 75,0 150,0 20,0 43386 49555 49568 49581 3XLMB 25,0 38,0 100,0 25,0 40386 48712 48734 48755 3MB 25,0 75,0 150,0 25,0 43396 49556 49569 49582 3XLMB RE = 1/2 Cutting Diameter (DC) 182 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
