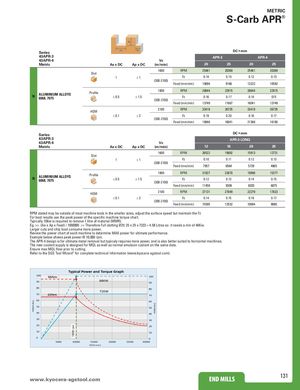

METRIC S-Carb APR® Ap Series Ae Ae DC • mm 43APR-3 APR-3 APR-4 43APR-4 Vc Metric Ae x DC Ap x DC (m/min) 20 25 20 25 1600 RPM 25461 20369 25461 20369 Slot 1 ≤1 Fz 0.14 0.15 0.12 0.13 (300-2100) Feed (mm/min) 10694 9166 12222 10592 N ALUMINIUM ALLOYS6068, 7075 Profile 1800 RPM 28644 22915 28644 22915≤ 0.5≤ 1.5Fz0.160.170.14015(300-2100) Feed (mm/min) 13749 11687 16041 13749 HSM 2100 RPM 33418 26735 33418 26735 ≤ 0.1 ≤2 Fz 0.19 0.20 0.16 0.17 (300-2100) Feed (mm/min) 19048 16041 21388 18180 Series DC • mm 43APR-3 APR-3 LONG 43APR-4 Vc Metric Ae x DC Ap x DC (m/min) 12 16 20 25 1600 RPM 26522 19892 15913 12731 Slot 1 ≤1 Fz 0.10 0.11 0.12 0.13 (300-2100) Feed (mm/min) 7957 6564 5729 4965 N ALUMINIUM ALLOYS6068, 7075 Profile 1800 RPM 31827 23870 19096 15277≤ 0.5≤ 1.5Fz0.120.130.140.15(300-2100) Feed (mm/min) 11458 9309 8020 6875 HSM 2100 RPM 37131 27849 22279 17823 ≤ 0.1 ≤2 Fz 0.14 0.15 0.16 0.17 (300-2100) Feed (mm/min) 15595 12532 10694 9090 RPM stated may be outside of most machine tools in the smaller sizes, adjust the surface speed but maintain the Fz For best results use the peak power of the specific machine torque chart. Typically 10kw is required to remove 1 litre of material (MMR). Eg. >> (Ae x Ap x Feed) / 1000000 >> Therefore Full slotting Ø25: 25 x 25 x 7333 = 4.58 Litres so it needs a min of 46Kw. Larger cuts and chip load consume more power. Review the power chart of each machine to determine MAX power for ultimate performance. Example below shows peak power @ 10,000 rpm. The APR-4 design is for ultimate metal removal but typicaly requires more power, and is also better suited to horizontal machines. The new coolant supply is designed for MQL as well as normal emulsion coolant on the same data. Ensure max MQL flow prior to cutting. Refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com). www.kyocerEaN-DsgMstILoLoSl.com END MILLS 131 10000 rpm
