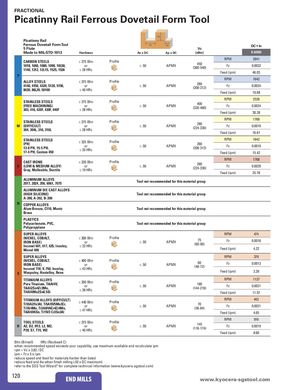

FRACTIONAL Picatinny Rail Ferrous Dovetail Form Tool Ap Picatinny Rail Ferrous Dovetail Form Tool Ae Ae DC • in 5 Flute Vc Made to MIL-STD-1913 Hardness Ae x DC Ap x DC (sfm) 0.6050 CARBON STEELS ≤ 275 Bhn Profile1018, 1040, 1080, 1090, 10L50,or1140, 1212, 12L15, 1525, 1536≤ 28 HRc≤ .50 RPM 2841APMX450(360-540)Fz0.0032Feed (ipm)46.03 P ALLOY STEELS ≤ 375 Bhn Profile4140, 4150, 4320, 5120, 5150,or8630, 86L20, 50100≤ 40 HRc≤ .50 RPMAPMX260(208-312)Fz16420.0024 Feed (ipm) 19.68 STAINLESS STEELS(FREE MACHINING)303, 416, 420F, 430F, 440F≤ 275 BhnProfileor≤ 28 HRc≤ .50 RPM 2526APMX400(320-480)Fz0.0024Feed (ipm)30.28 STAINLESS STEELSM(DIFFICULT)304, 304L, 316, 316L≤ 275 BhnProfileor≤ 28 HRc≤ .50 RPMAPMX280(224-336)Fz17680.0019 Feed (ipm) 16.61 STAINLESS STEELS(PH)13-8 PH, 15-5 PH,17-4 PH, Custom 450≤ 325 BhnProfileor≤ 35 HRc≤ .50 RPMAPMX260(208-312)Fz16420.0019Feed (ipm)15.42 CAST IRONS ≤ 220 Bhn ProfileK(LOW & MEDIUM ALLOY)orGray, Malleable, Ductile≤ 19 HRc≤ .50 RPMAPMX280(224-336)Fz17680.0029 Feed (ipm) 25.78 ALUMINUM ALLOYS2017, 2024, 356, 6061, 7075 Tool not recommended for this material group ALUMINUM DIE CAST ALLOYS (HIGH SILICONE) Tool not recommended for this material group A-390, A-392, B-390 N COPPER ALLOYS Alum Bronze, C110, Muntz Tool not recommended for this material group Brass PLASTICS Polycarbonate, PVC, Tool not recommended for this material group Polypropylene SUPER ALLOYS RPM 474 (NICKEL, COBALT, ≤ 300 Bhn ProfileIRON BASE)orInconel 601, 617, 625, Incoloy,≤ 32 HRc≤ .50APMX 75(60-90) Fz 0.0018 Monel 400 Feed (ipm) 4.22 SUPER ALLOYS RPM 379 (NICKEL, COBALT, ≤ 400 Bhn ProfileIRON BASE)orInconel 718, X-750, Incoloy,≤ 43 HRc≤ .50APMX 60(48-72) Fz 0.0013 S Waspaloy, Hastelloy, Rene Feed (ipm) 2.39 TITANIUM ALLOYSPure Titanium, Ti6Al4V,Ti6Al2Sn4Zr2Mo,Ti4Al4Mo2Sn0.5Si≤ 350 BhnProfileor≤ .50≤ 38 HRc RPM 1137APMX180(144-216)Fz0.0021Feed (ipm)11.97 TITANIUM ALLOYS (DIFFICULT)Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr,Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo,Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al≤ 440 Bhnor≤ 47 HRcProfile≤ .50 RPM 442APMX70(56-84)Fz0.0021Feed (ipm)4.65 TOOL STEELSHA2, D2, H13, L2, M2,P20, S7, T15, W2≤ 375 BhnProfileor≤ 40 HRc≤ .50 RPMAPMX145(116-174)Fz9160.0019 Feed (ipm) 8.60 Bhn (Brinell)   HRc (Rockwell C) when recommended speed exceeds your capability, use maximum available and recalculate ipm rpm = Vc x 3.82 / DC ipm = Fz x 5 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x DC maximum) refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com) 120 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
