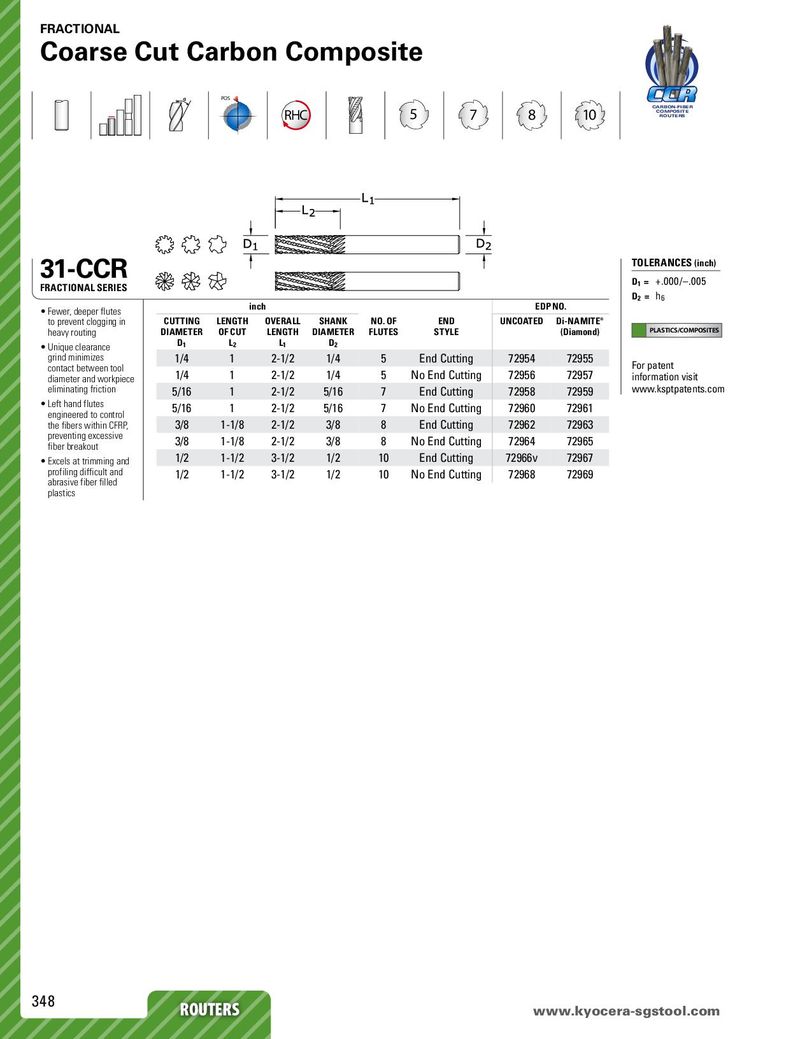

FRACTIONAL Coarse Cut Carbon Composite POS CCR CARBON-FIBER RHC 5 7 8 10 COMPOSITE ROUTERS 31-CCR TOLERANCES (inch) FRACTIONAL SERIES D1 = +.000/–.005 D2 = h6 • Fewer, deeper flutes inch EDP NO. to prevent clogging in CUTTING LENGTH OVERALL SHANK NO. OF END UNCOATED Di-NAMITE® heavy routing DIAMETER OF CUT LENGTH DIAMETER FLUTES STYLE (Diamond) PLASTICS/COMPOSITES • Unique clearance D1 L2 L1 D2 grind minimizes 1/4 1 2-1/2 1/4 5 End Cutting 72954 72955 For patent contact between tool 1/4 1 2-1/2 1/4 5 No End Cutting 72956 72957 information visit diameter and workpiece eliminating friction 5/16 1 2-1/2 5/16 7 End Cutting 72958 72959 www.ksptpatents.com • Left hand flutes 5/16 1 2-1/2 5/16 7 No End Cutting 72960 72961 engineered to control the fibers within CFRP, 3/8 1-1/8 2-1/2 3/8 8 End Cutting 72962 72963 preventing excessive 3/8 1-1/8 2-1/2 3/8 8 No End Cutting 72964 72965 fiber breakout • Excels at trimming and 1/2 1-1/2 3-1/2 1/2 10 End Cutting 72966v 72967 profiling difficult and 1/2 1-1/2 3-1/2 1/2 10 No End Cutting 72968 72969 abrasive fiber filled plastics 348 ROUTERS www.RkOyUocTEeRraS-sgstool.com
