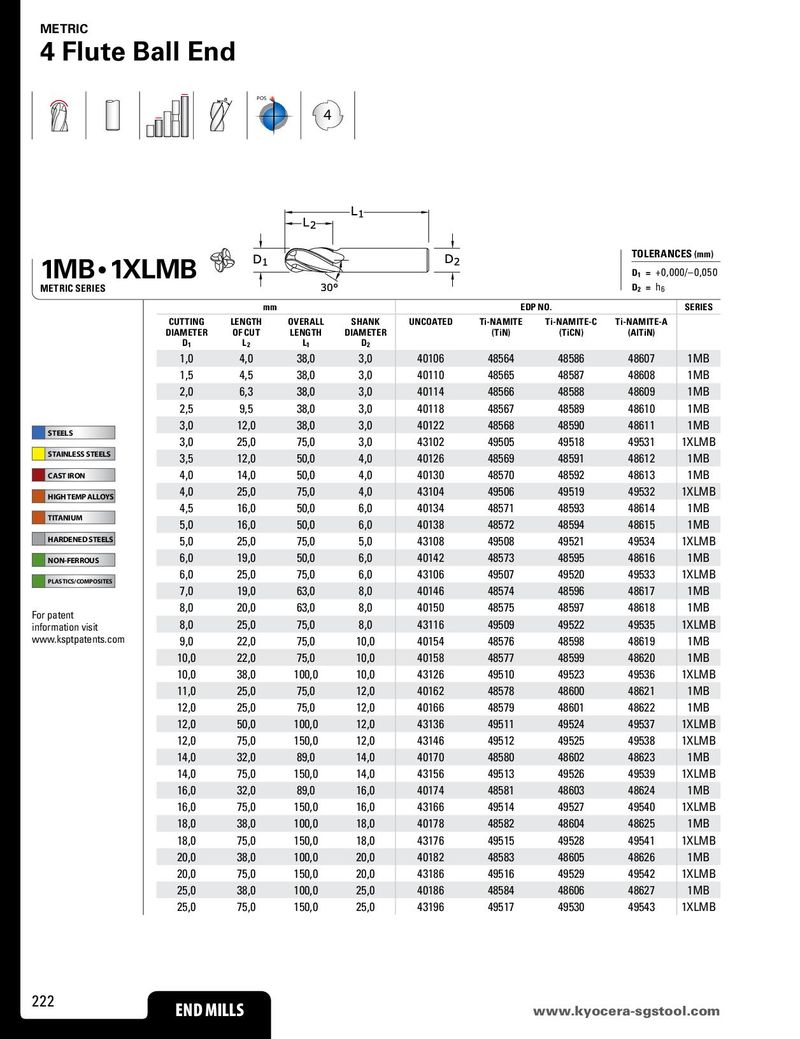

METRIC 4 Flute Ball End POS 4 1MB • 1XLMB TOLERANCES (mm) D1 = +0,000/–0,050 METRIC SERIES D2 = h6 mm EDP NO. SERIES CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 1,0 4,0 38,0 3,0 40106 48564 48586 48607 1MB 1,5 4,5 38,0 3,0 40110 48565 48587 48608 1MB 2,0 6,3 38,0 3,0 40114 48566 48588 48609 1MB 2,5 9,5 38,0 3,0 40118 48567 48589 48610 1MB STEELS 3,0 12,0 38,0 3,0 40122 48568 48590 48611 1MB 3,0 25,0 75,0 3,0 43102 49505 49518 49531 1XLMB STAINLESS STEELS 3,5 12,0 50,0 4,0 40126 48569 48591 48612 1MB CAST IRON 4,0 14,0 50,0 4,0 40130 48570 48592 48613 1MB HIGH TEMP ALLOYS 4,0 25,0 75,0 4,0 43104 49506 49519 49532 1XLMB 4,5 16,0 50,0 6,0 40134 48571 48593 48614 1MB TITANIUM 5,0 16,0 50,0 6,0 40138 48572 48594 48615 1MB HARDENED STEELS 5,0 25,0 75,0 5,0 43108 49508 49521 49534 1XLMB NON-FERROUS 6,0 19,0 50,0 6,0 40142 48573 48595 48616 1MB PLASTICS/COMPOSITES 6,0 25,0 75,0 6,0 43106 49507 49520 49533 1XLMB 7,0 19,0 63,0 8,0 40146 48574 48596 48617 1MB For patent 8,0 20,0 63,0 8,0 40150 48575 48597 48618 1MB information visit 8,0 25,0 75,0 8,0 43116 49509 49522 49535 1XLMB www.ksptpatents.com 9,0 22,0 75,0 10,0 40154 48576 48598 48619 1MB 10,0 22,0 75,0 10,0 40158 48577 48599 48620 1MB 10,0 38,0 100,0 10,0 43126 49510 49523 49536 1XLMB 11,0 25,0 75,0 12,0 40162 48578 48600 48621 1MB 12,0 25,0 75,0 12,0 40166 48579 48601 48622 1MB 12,0 50,0 100,0 12,0 43136 49511 49524 49537 1XLMB 12,0 75,0 150,0 12,0 43146 49512 49525 49538 1XLMB 14,0 32,0 89,0 14,0 40170 48580 48602 48623 1MB 14,0 75,0 150,0 14,0 43156 49513 49526 49539 1XLMB 16,0 32,0 89,0 16,0 40174 48581 48603 48624 1MB 16,0 75,0 150,0 16,0 43166 49514 49527 49540 1XLMB 18,0 38,0 100,0 18,0 40178 48582 48604 48625 1MB 18,0 75,0 150,0 18,0 43176 49515 49528 49541 1XLMB 20,0 38,0 100,0 20,0 40182 48583 48605 48626 1MB 20,0 75,0 150,0 20,0 43186 49516 49529 49542 1XLMB 25,0 38,0 100,0 25,0 40186 48584 48606 48627 1MB 25,0 75,0 150,0 25,0 43196 49517 49530 49543 1XLMB 222 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
