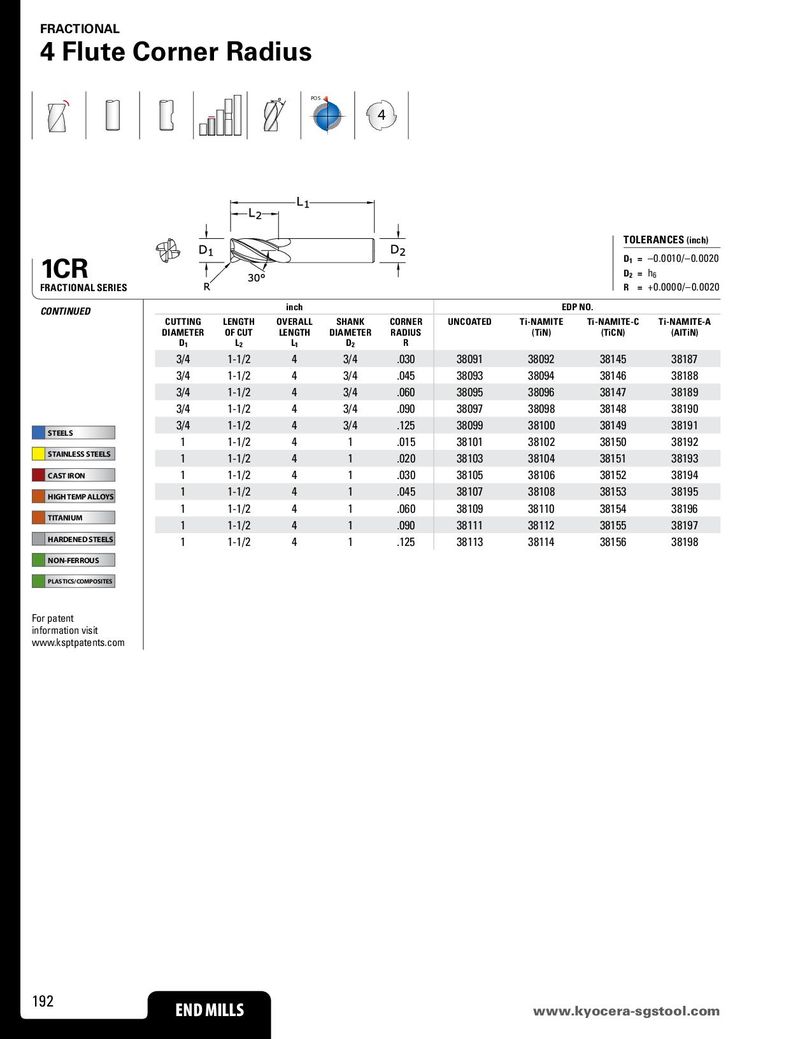

FRACTIONAL 4 Flute Corner Radius POS 4 TOLERANCES (inch) 1CR D1 = –0.0010/–0.0020 D2 = h6 FRACTIONAL SERIES R = +0.0000/–0.0020 CONTINUED inch EDP NO. CUTTING LENGTH OVERALL SHANK CORNER UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER RADIUS (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 R 3/4 1-1/2 4 3/4 .030 38091 38092 38145 38187 3/4 1-1/2 4 3/4 .045 38093 38094 38146 38188 3/4 1-1/2 4 3/4 .060 38095 38096 38147 38189 3/4 1-1/2 4 3/4 .090 38097 38098 38148 38190 STEELS 3/4 1-1/2 4 3/4 .125 38099 38100 38149 38191 1 1-1/2 4 1 .015 38101 38102 38150 38192 STAINLESS STEELS 1 1-1/2 4 1 .020 38103 38104 38151 38193 CAST IRON 1 1-1/2 4 1 .030 38105 38106 38152 38194 HIGH TEMP ALLOYS 1 1-1/2 4 1 .045 38107 38108 38153 38195 1 1-1/2 4 1 .060 38109 38110 38154 38196 TITANIUM 1 1-1/2 4 1 .090 38111 38112 38155 38197 HARDENED STEELS 1 1-1/2 4 1 .125 38113 38114 38156 38198 NON-FERROUS PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com 192 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
