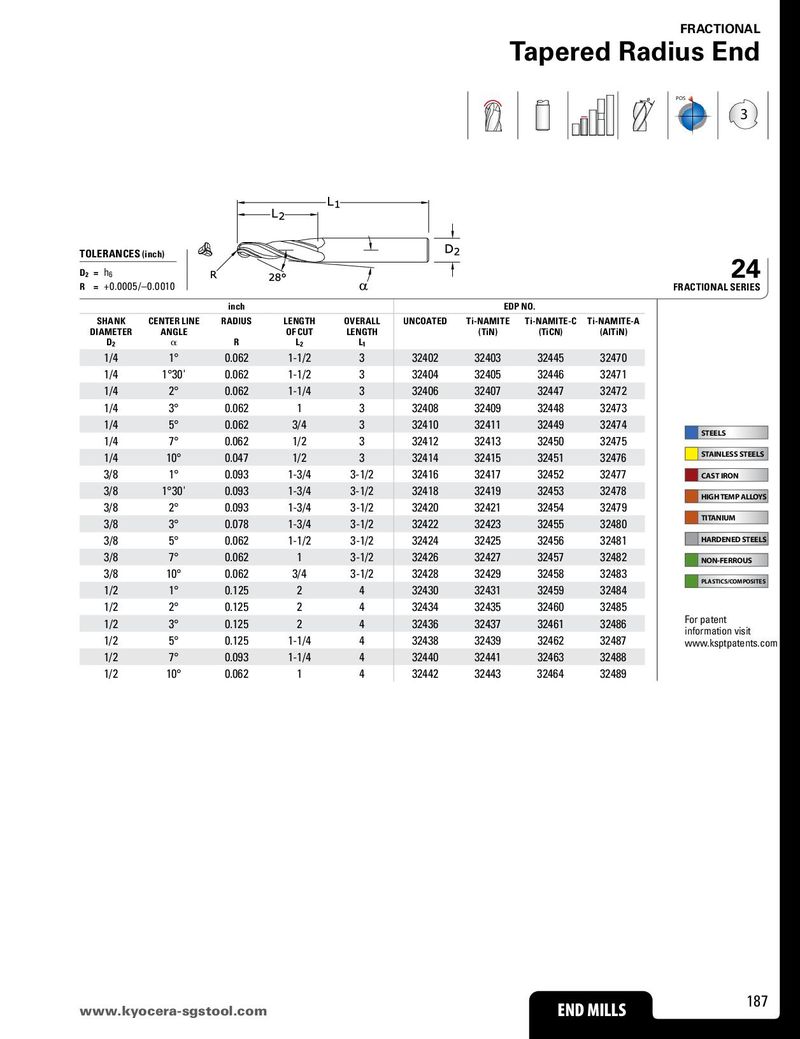

FRACTIONAL Tapered Radius End POS 3 TOLERANCES (inch) 24 D2 = h6 R = +0.0005/–0.0010 FRACTIONAL SERIES inch EDP NO. SHANK CENTER LINE RADIUS LENGTH OVERALL UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER ANGLE OF CUT LENGTH (TiN) (TiCN) (AlTiN) D2 α R L2 L1 1/4 1° 0.062 1-1/2 3 32402 32403 32445 32470 1/4 1°30' 0.062 1-1/2 3 32404 32405 32446 32471 1/4 2° 0.062 1-1/4 3 32406 32407 32447 32472 1/4 3° 0.062 1 3 32408 32409 32448 32473 1/4 5° 0.062 3/4 3 32410 32411 32449 32474 STEELS 1/4 7° 0.062 1/2 3 32412 32413 32450 32475 1/4 10° 0.047 1/2 3 32414 32415 32451 32476 STAINLESS STEELS 3/8 1° 0.093 1-3/4 3-1/2 32416 32417 32452 32477 CAST IRON 3/8 1°30' 0.093 1-3/4 3-1/2 32418 32419 32453 32478 HIGH TEMP ALLOYS 3/8 2° 0.093 1-3/4 3-1/2 32420 32421 32454 32479 3/8 3° 0.078 1-3/4 3-1/2 32422 32423 32455 32480 TITANIUM 3/8 5° 0.062 1-1/2 3-1/2 32424 32425 32456 32481 HARDENED STEELS 3/8 7° 0.062 1 3-1/2 32426 32427 32457 32482 NON-FERROUS 3/8 10° 0.062 3/4 3-1/2 32428 32429 32458 32483 PLASTICS/COMPOSITES 1/2 1° 0.125 2 4 32430 32431 32459 32484 1/2 2° 0.125 2 4 32434 32435 32460 32485 1/2 3° 0.125 2 4 32436 32437 32461 32486 For patent 1/2 5° 0.125 1-1/4 4 32438 32439 32462 32487 information visit www.ksptpatents.com 1/2 7° 0.093 1-1/4 4 32440 32441 32463 32488 1/2 10° 0.062 1 4 32442 32443 32464 32489 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 187
