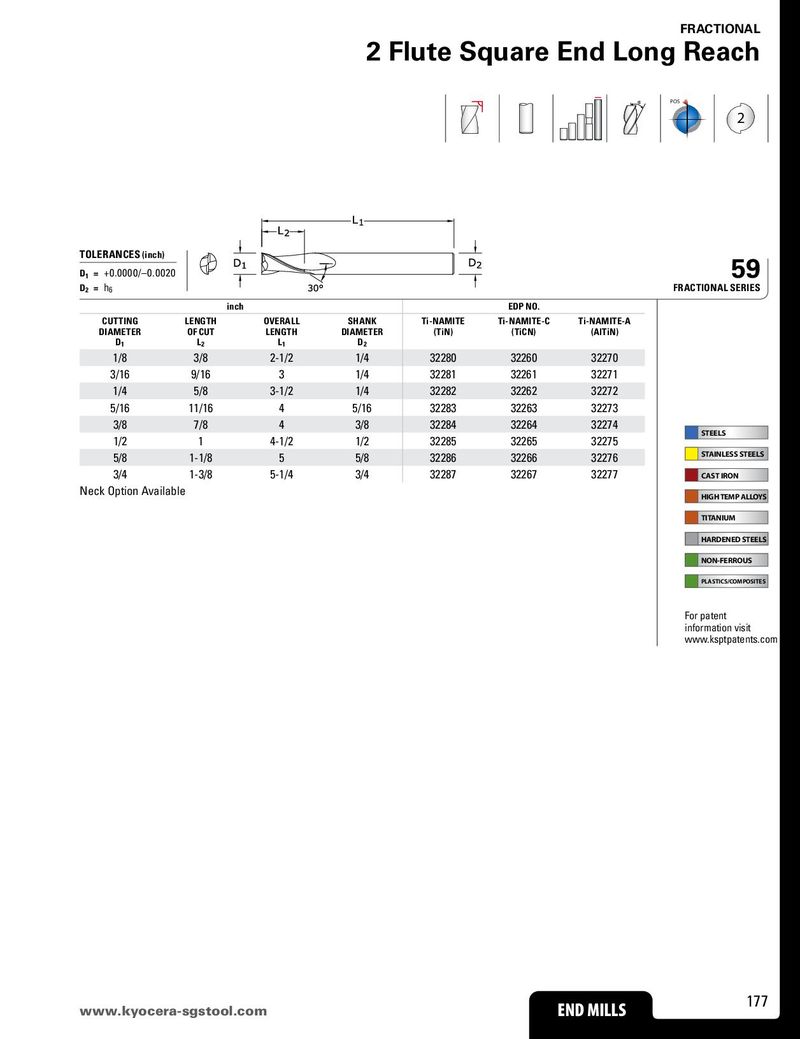

FRACTIONAL 2 Flute Square End Long Reach POS 2 TOLERANCES (inch) 59 D1 = +0.0000/–0.0020 D2 = h6 FRACTIONAL SERIES inch EDP NO. CUTTING LENGTH OVERALL SHANK Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 1/8 3/8 2-1/2 1/4 32280 32260 32270 3/16 9/16 3 1/4 32281 32261 32271 1/4 5/8 3-1/2 1/4 32282 32262 32272 5/16 11/16 4 5/16 32283 32263 32273 3/8 7/8 4 3/8 32284 32264 32274 STEELS 1/2 1 4-1/2 1/2 32285 32265 32275 5/8 1-1/8 5 5/8 32286 32266 32276 STAINLESS STEELS 3/4 1-3/8 5-1/4 3/4 32287 32267 32277 CAST IRON Neck Option Available HIGH TEMP ALLOYS TITANIUM HARDENED STEELS NON-FERROUS PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com www.kyocerEaN-DsgMstILoLoSl.com END MILLS 177
