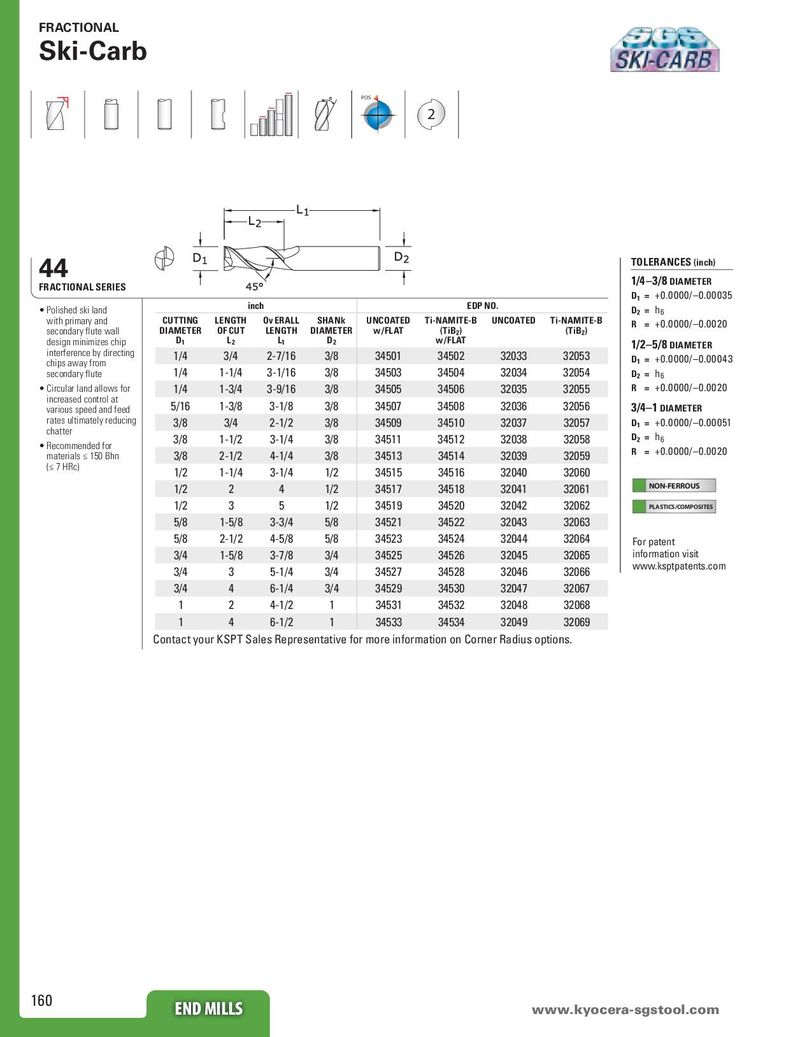

FRACTIONAL Ski-Carb POS 2 44 TOLERANCES (inch) Fractional Series 1/4–3/8 DIAMETER D1 = +0.0000/–0.00035 • Polished ski land inch EDP No. D2 = h6 with primary and Cutting Length Ov erall Shank UNCoated Ti-NAMITE-B UNCoated Ti-NAMITE-B R = +0.0000/–0.0020 secondary flute wall DiaMETER of Cut Length DiaMETER w /Flat (TiB2) (TiB2) design minimizes chip D1 l2 L1 D2 w /flat 1/2–5/8 DIAMETER interference by directing 1/4 3/4 2-7/16 3/8 34501 34502 32033 32053 D1 = +0.0000/–0.00043 chips away from 1/4 1-1/4 3-1/16 3/8 34503 34504 32034 32054 secondary flute D2 = h6 • Circular land allows for 1/4 1-3/4 3-9/16 3/8 34505 34506 32035 32055 R = +0.0000/–0.0020 increased control at 5/16 1-3/8 3-1/8 3/8 34507 34508 32036 32056 3/4–1 DIAMETER various speed and feed rates ultimately reducing 3/8 3/4 2-1/2 3/8 34509 34510 32037 32057 D1 = +0.0000/–0.00051 chatter 3/8 1-1/2 3-1/4 3/8 34511 34512 32038 32058 D2 = h6 • Recommended for R = +0.0000/–0.0020 materials ≤ 150 Bhn 3/8 2-1/2 4-1/4 3/8 34513 34514 32039 32059 (≤ 7 HRc) 1/2 1-1/4 3-1/4 1/2 34515 34516 32040 32060 1/2 2 4 1/2 34517 34518 32041 32061 NON-FERROUS 1/2 3 5 1/2 34519 34520 32042 32062 PLASTICS/COMPOSITES 5/8 1-5/8 3-3/4 5/8 34521 34522 32043 32063 5/8 2-1/2 4-5/8 5/8 34523 34524 32044 32064 For patent 3/4 1-5/8 3-7/8 3/4 34525 34526 32045 32065 information visit 3/4 3 5-1/4 3/4 34527 34528 32046 32066 www.ksptpatents.com 3/4 4 6-1/4 3/4 34529 34530 32047 32067 1 2 4-1/2 1 34531 34532 32048 32068 1 4 6-1/2 1 34533 34534 32049 32069 Contact your KSPT Sales Representative for more information on Corner Radius options. 160 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
