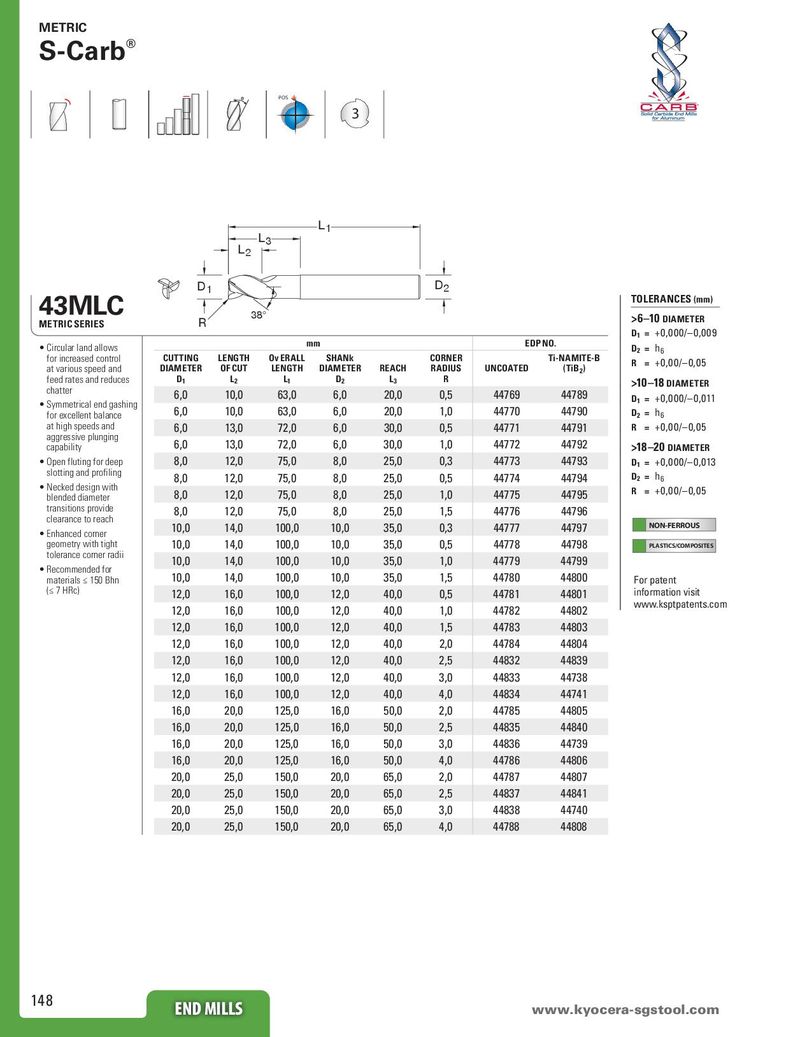

METRIC S-Carb® POS 3 ® L3 L1 L2 43MLC D1 D2 TOLERANCES (mm) Metric Series R 38° >6–10 DIAMETER D1 = +0,000/–0,009 • Circular land allows mm EDP No. D2 = h6 for increased control Cutting Length Ov erall Shank CORNER Ti-NAMITE-B R = +0,00/–0,05 at various speed and Diameter of Cut Length Diameter REACH RADIUS UNCOATED (TiB2) feed rates and reduces D1 l2 L1 D2 L3 R >10–18 DIAMETER chatter 6,0 10,0 63,0 6,0 20,0 0,5 44769 44789 D1 = +0,000/–0,011 • Symmetrical end gashing 6,0 10,0 63,0 6,0 20,0 1,0 44770 44790 D2 = h6 for excellent balance at high speeds and 6,0 13,0 72,0 6,0 30,0 0,5 44771 44791 R = +0,00/–0,05 aggressive plunging 6,0 13,0 72,0 6,0 30,0 1,0 44772 44792 capability >18–20 DIAMETER • Open fluting for deep 8,0 12,0 75,0 8,0 25,0 0,3 44773 44793 D1 = +0,000/–0,013 slotting and profiling 8,0 12,0 75,0 8,0 25,0 0,5 44774 44794 D2 = h6 • Necked design with 8,0 12,0 75,0 8,0 25,0 1,0 44775 44795 R = +0,00/–0,05 blended diameter transitions provide 8,0 12,0 75,0 8,0 25,0 1,5 44776 44796 clearance to reach 10,0 14,0 100,0 10,0 35,0 0,3 44777 44797 NON-FERROUS • Enhanced corner geometry with tight 10,0 14,0 100,0 10,0 35,0 0,5 44778 44798 PLASTICS/COMPOSITES tolerance corner radii 10,0 14,0 100,0 10,0 35,0 1,0 44779 44799 • Recommended for 10,0 14,0 100,0 10,0 35,0 1,5 44780 44800 materials ≤ 150 Bhn For patent (≤ 7 HRc) 12,0 16,0 100,0 12,0 40,0 0,5 44781 44801 information visit 12,0 16,0 100,0 12,0 40,0 1,0 44782 44802 www.ksptpatents.com 12,0 16,0 100,0 12,0 40,0 1,5 44783 44803 12,0 16,0 100,0 12,0 40,0 2,0 44784 44804 12,0 16,0 100,0 12,0 40,0 2,5 44832 44839 12,0 16,0 100,0 12,0 40,0 3,0 44833 44738 12,0 16,0 100,0 12,0 40,0 4,0 44834 44741 16,0 20,0 125,0 16,0 50,0 2,0 44785 44805 16,0 20,0 125,0 16,0 50,0 2,5 44835 44840 16,0 20,0 125,0 16,0 50,0 3,0 44836 44739 16,0 20,0 125,0 16,0 50,0 4,0 44786 44806 20,0 25,0 150,0 20,0 65,0 2,0 44787 44807 20,0 25,0 150,0 20,0 65,0 2,5 44837 44841 20,0 25,0 150,0 20,0 65,0 3,0 44838 44740 20,0 25,0 150,0 20,0 65,0 4,0 44788 44808 148 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
