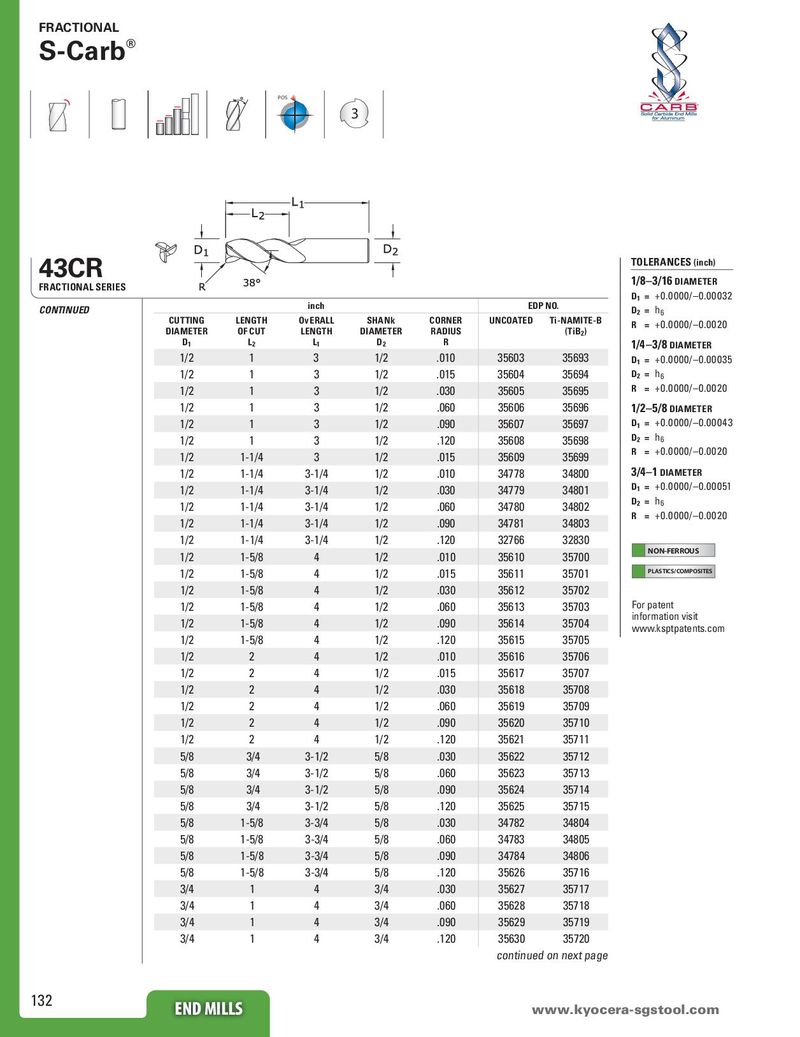

FRACTIONAL S-Carb® POS 3 ® 43CR TOLERANCES (inch) Fractional Series 1/8–3/16 DIAMETER D1 = +0.0000/–0.00032 CONTINUED inch EDP No. D2 = h6 Cutting Length Ov erall Shank Corner Uncoated Ti-NAMITE-B R = +0.0000/–0.0020 Diameter of Cut Length Diameter Radius (TiB2) D1 l2 L1 D2 R 1/4–3/8 DIAMETER 1/2 1 3 1/2 .010 35603 35693 D1 = +0.0000/–0.00035 1/2 1 3 1/2 .015 35604 35694 D2 = h6 1/2 1 3 1/2 .030 35605 35695 R = +0.0000/–0.0020 1/2 1 3 1/2 .060 35606 35696 1/2–5/8 DIAMETER 1/2 1 3 1/2 .090 35607 35697 D1 = +0.0000/–0.00043 1/2 1 3 1/2 .120 35608 35698 D2 = h6 1/2 1-1/4 3 1/2 .015 35609 35699 R = +0.0000/–0.0020 1/2 1-1/4 3-1/4 1/2 .010 34778 34800 3/4–1 DIAMETER 1/2 1-1/4 3-1/4 1/2 .030 34779 34801 D1 = +0.0000/–0.00051 1/2 1-1/4 3-1/4 1/2 .060 34780 34802 D2 = h6 1/2 1-1/4 3-1/4 1/2 .090 34781 34803 R = +0.0000/–0.0020 1/2 1-1/4 3-1/4 1/2 .120 32766 32830 1/2 1-5/8 4 1/2 .010 35610 35700 NON-FERROUS 1/2 1-5/8 4 1/2 .015 35611 35701 PLASTICS/COMPOSITES 1/2 1-5/8 4 1/2 .030 35612 35702 1/2 1-5/8 4 1/2 .060 35613 35703 For patent 1/2 1-5/8 4 1/2 .090 35614 35704 information visit www.ksptpatents.com 1/2 1-5/8 4 1/2 .120 35615 35705 1/2 2 4 1/2 .010 35616 35706 1/2 2 4 1/2 .015 35617 35707 1/2 2 4 1/2 .030 35618 35708 1/2 2 4 1/2 .060 35619 35709 1/2 2 4 1/2 .090 35620 35710 1/2 2 4 1/2 .120 35621 35711 5/8 3/4 3-1/2 5/8 .030 35622 35712 5/8 3/4 3-1/2 5/8 .060 35623 35713 5/8 3/4 3-1/2 5/8 .090 35624 35714 5/8 3/4 3-1/2 5/8 .120 35625 35715 5/8 1-5/8 3-3/4 5/8 .030 34782 34804 5/8 1-5/8 3-3/4 5/8 .060 34783 34805 5/8 1-5/8 3-3/4 5/8 .090 34784 34806 5/8 1-5/8 3-3/4 5/8 .120 35626 35716 3/4 1 4 3/4 .030 35627 35717 3/4 1 4 3/4 .060 35628 35718 3/4 1 4 3/4 .090 35629 35719 3/4 1 4 3/4 .120 35630 35720 continued on next page 132 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
