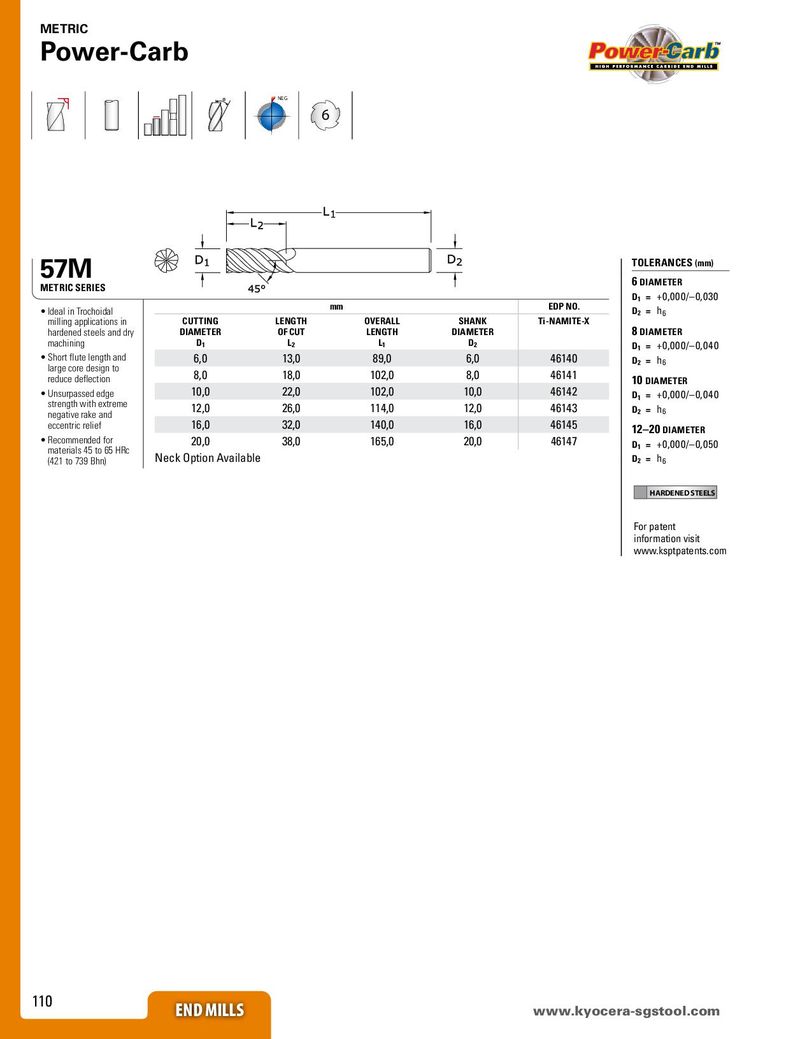

METRIC Power-Carb NEG 6 57M TOLERANCES (mm) METRIC SERIES 6 DIAMETER D1 = +0,000/–0,030 • Ideal in Trochoidal mm EDP NO. D2 = h6 milling applications in CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X 8 DIAMETER hardened steels and dry DIAMETER OF CUT LENGTH DIAMETER machining D1 L2 L1 D2 D1 = +0,000/–0,040 • Short flute length and 6,0 13,0 89,0 6,0 46140 D2 = h6 large core design to 8,0 18,0 102,0 8,0 46141 reduce deflection 10 DIAMETER • Unsurpassed edge 10,0 22,0 102,0 10,0 46142 D1 = +0,000/–0,040 strength with extreme 12,0 26,0 114,0 12,0 46143 D2 = h6 negative rake and eccentric relief 16,0 32,0 140,0 16,0 46145 12–20 DIAMETER • Recommended for 20,0 38,0 165,0 20,0 46147 D1 = +0,000/–0,050 materials 45 to 65 HRc Neck Option Available D2 = h6 (421 to 739 Bhn) HARDENED STEELS For patent information visit www.ksptpatents.com 110 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
