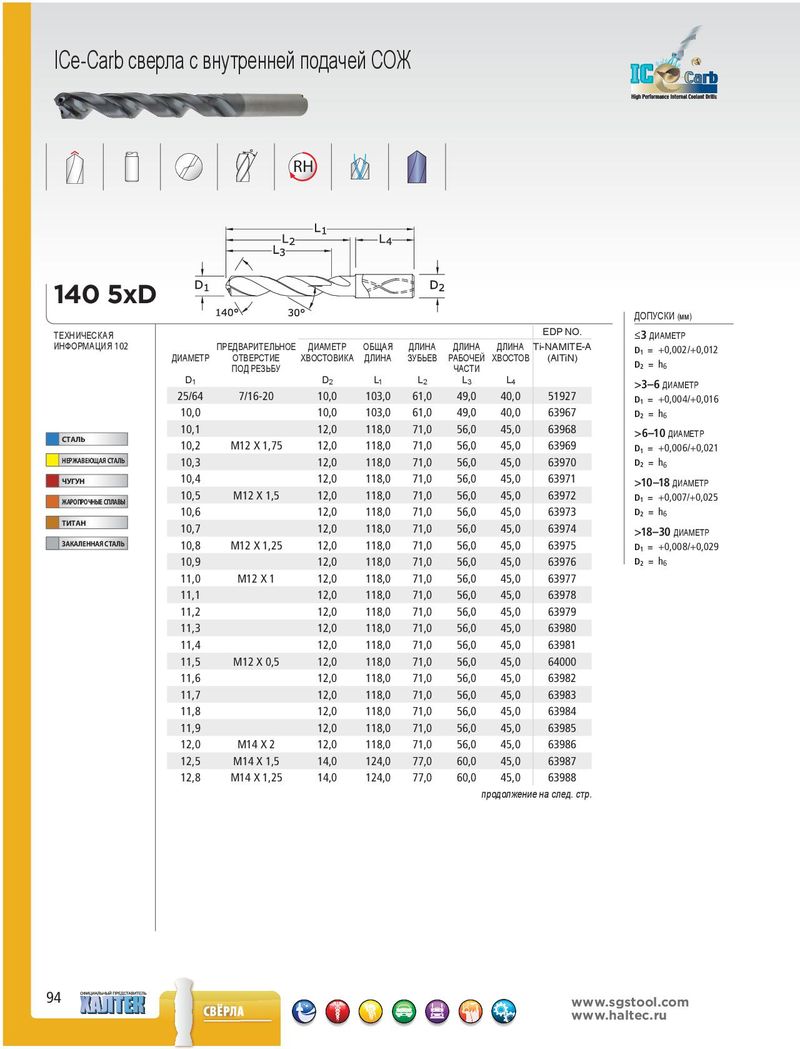

ICe-Carb сверла с внутренней подачей СОЖ RH 140 5xD ДОПУСКИ (мм) ТЕХНИЧЕСКАЯ EDP NO. ≤3 ДИАМЕТР ИНФОРМАЦИЯ 102 ПРЕДВАРИТЕЛЬНОЕ ДИАМЕТР ОБЩАЯ ДЛИНА ДЛИНА ДЛИНА Ti-NAMITE-A D1 = +0,002/+0,012 ДИАМЕТР ОТВЕРСТИЕ ХВОСТОВИКА ДЛИНА ЗУБЬЕВ РАБОЧЕЙ ХВОСТОВ (AlTiN) D2 = h6 ПОД РЕЗЬБУ ЧАСТИ D1 D2 L1 L2 L3 L4 >3–6 ДИАМЕТР 25/64 7/16-20 10,0 103,0 61,0 49,0 40,0 51927 D1 = +0,004/+0,016 10,0 10,0 103,0 61,0 49,0 40,0 63967 D2 = h6 10,1 12,0 118,0 71,0 56,0 45,0 63968 >6–10 ДИАМЕТР СТАЛЬ 10,2 M12 X 1,75 12,0 118,0 71,0 56,0 45,0 63969 D1 = +0,006/+0,021 НЕРЖАВЕЮЩАЯ СТАЛЬ 10,3 12,0 118,0 71,0 56,0 45,0 63970 D2 = h6 ЧУГУН 10,4 12,0 118,0 71,0 56,0 45,0 63971 >10–18 ДИАМЕТР ЖАРОПРОЧНЫЕ СПЛАВЫ 10,5 M12 X 1,5 12,0 118,0 71,0 56,0 45,0 63972 D1 = +0,007/+0,025 10,6 12,0 118,0 71,0 56,0 45,0 63973 D2 = h6 ТИТАН 10,7 12,0 118,0 71,0 56,0 45,0 63974 >18–30 ДИАМЕТР ЗАКАЛЕННАЯ СТАЛЬ 10,8 M12 X 1,25 12,0 118,0 71,0 56,0 45,0 63975 D1 = +0,008/+0,029 10,9 12,0 118,0 71,0 56,0 45,0 63976 D2 = h6 11,0 M12 X 1 12,0 118,0 71,0 56,0 45,0 63977 11,1 12,0 118,0 71,0 56,0 45,0 63978 11,2 12,0 118,0 71,0 56,0 45,0 63979 11,3 12,0 118,0 71,0 56,0 45,0 63980 11,4 12,0 118,0 71,0 56,0 45,0 63981 11,5 M12 X 0,5 12,0 118,0 71,0 56,0 45,0 64000 11,6 12,0 118,0 71,0 56,0 45,0 63982 11,7 12,0 118,0 71,0 56,0 45,0 63983 11,8 12,0 118,0 71,0 56,0 45,0 63984 11,9 12,0 118,0 71,0 56,0 45,0 63985 12,0 M14 X 2 12,0 118,0 71,0 56,0 45,0 63986 12,5 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 63987 12,8 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 63988 продолжение на след. стр. 94 www.sgstool.com www.haltec.ru
