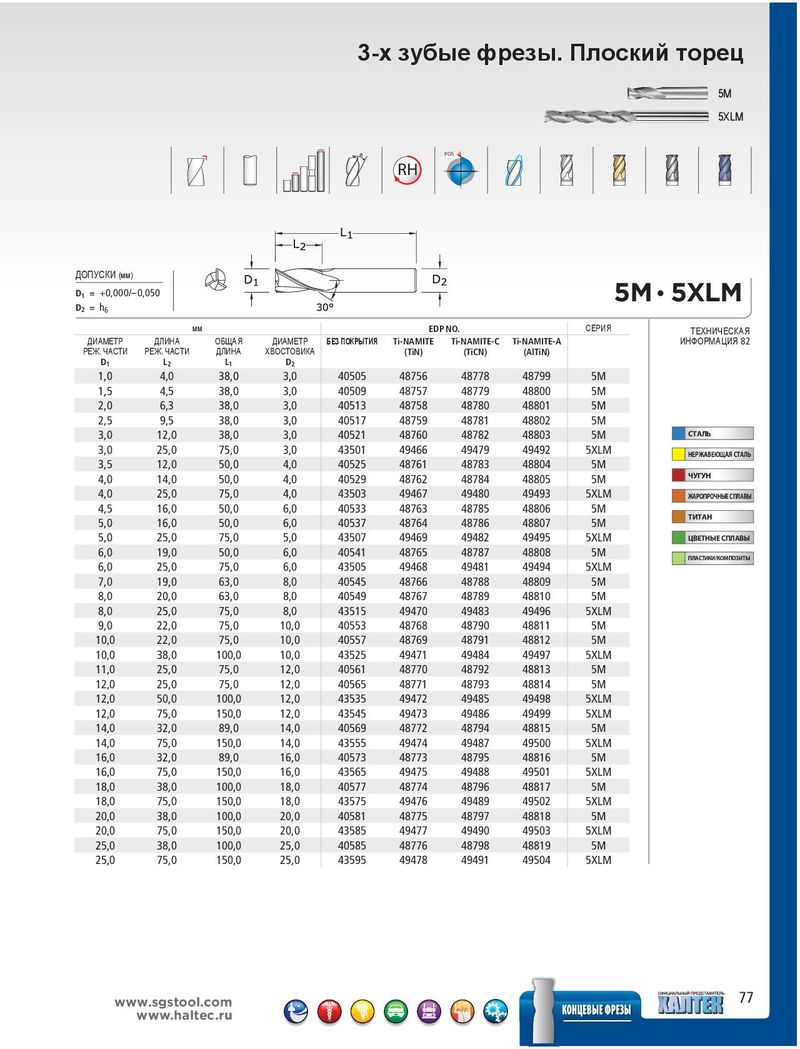

3-х зубые фрезы. Плоский торец 5M 5XLM POS RH ДОПУСКИ (мм) D1 = +0,000/–0,050 5M • 5XLM D2 = h6 мм EDP NO. СЕРИЯ ТЕХНИЧЕСКАЯ ДИАМЕТР ДЛИНА ОБЩАЯ ДИАМЕТР БЕЗ ПОКРЫТИЯ Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A ИНФОРМАЦИЯ 82 РЕЖ. ЧАСТИ РЕЖ. ЧАСТИ ДЛИНА ХВОСТОВИКА (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 1,0 4,0 38,0 3,0 40505 48756 48778 48799 5M 1,5 4,5 38,0 3,0 40509 48757 48779 48800 5M 2,0 6,3 38,0 3,0 40513 48758 48780 48801 5M 2,5 9,5 38,0 3,0 40517 48759 48781 48802 5M 3,0 12,0 38,0 3,0 40521 48760 48782 48803 5M СТАЛЬ 3,0 25,0 75,0 3,0 43501 49466 49479 49492 5XLM НЕРЖАВЕЮЩАЯ СТАЛЬ 3,5 12,0 50,0 4,0 40525 48761 48783 48804 5M 4,0 14,0 50,0 4,0 40529 48762 48784 48805 5M ЧУГУН 4,0 25,0 75,0 4,0 43503 49467 49480 49493 5XLM ЖАРОПРОЧНЫЕ СПЛАВЫ 4,5 16,0 50,0 6,0 40533 48763 48785 48806 5M ТИТАН 5,0 16,0 50,0 6,0 40537 48764 48786 48807 5M 5,0 25,0 75,0 5,0 43507 49469 49482 49495 5XLM ЦВЕТНЫЕ СПЛАВЫ 6,0 19,0 50,0 6,0 40541 48765 48787 48808 5M ПЛАСТИКИ/КОМПОЗИТЫ 6,0 25,0 75,0 6,0 43505 49468 49481 49494 5XLM 7,0 19,0 63,0 8,0 40545 48766 48788 48809 5M 8,0 20,0 63,0 8,0 40549 48767 48789 48810 5M 8,0 25,0 75,0 8,0 43515 49470 49483 49496 5XLM 9,0 22,0 75,0 10,0 40553 48768 48790 48811 5M 10,0 22,0 75,0 10,0 40557 48769 48791 48812 5M 10,0 38,0 100,0 10,0 43525 49471 49484 49497 5XLM 11,0 25,0 75,0 12,0 40561 48770 48792 48813 5M 12,0 25,0 75,0 12,0 40565 48771 48793 48814 5M 12,0 50,0 100,0 12,0 43535 49472 49485 49498 5XLM 12,0 75,0 150,0 12,0 43545 49473 49486 49499 5XLM 14,0 32,0 89,0 14,0 40569 48772 48794 48815 5M 14,0 75,0 150,0 14,0 43555 49474 49487 49500 5XLM 16,0 32,0 89,0 16,0 40573 48773 48795 48816 5M 16,0 75,0 150,0 16,0 43565 49475 49488 49501 5XLM 18,0 38,0 100,0 18,0 40577 48774 48796 48817 5M 18,0 75,0 150,0 18,0 43575 49476 49489 49502 5XLM 20,0 38,0 100,0 20,0 40581 48775 48797 48818 5M 20,0 75,0 150,0 20,0 43585 49477 49490 49503 5XLM 25,0 38,0 100,0 25,0 40585 48776 48798 48819 5M 25,0 75,0 150,0 25,0 43595 49478 49491 49504 5XLM www.sgstool.com 77 www.haltec.ru
