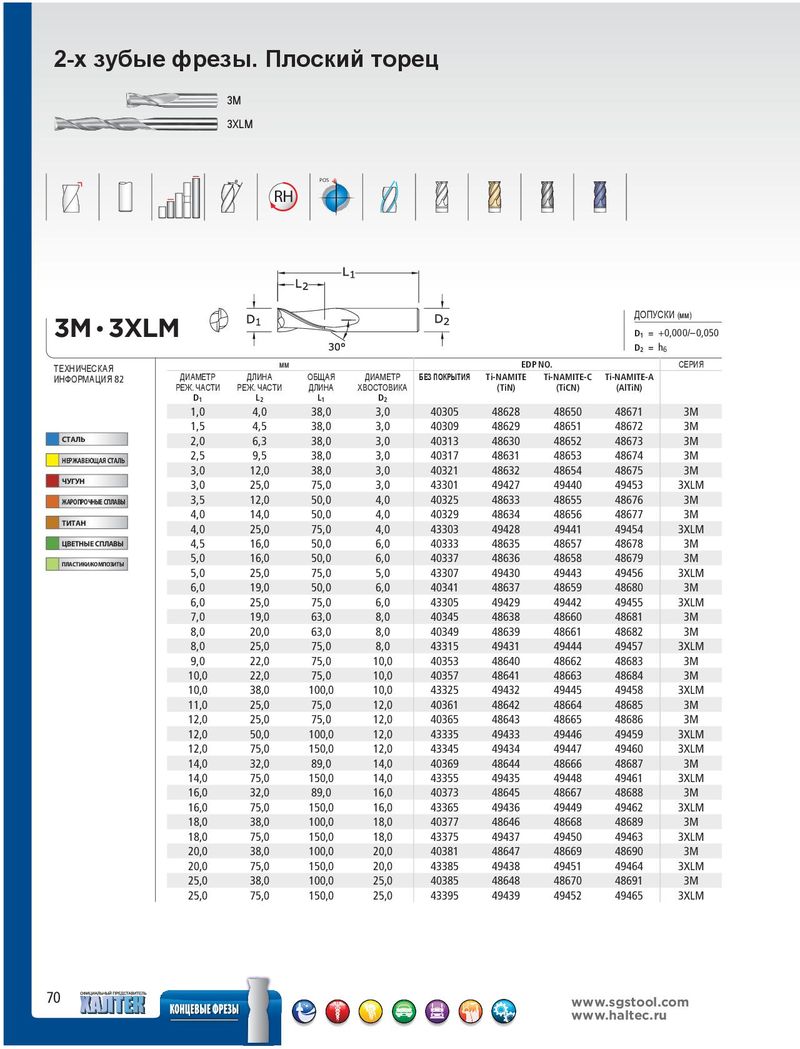

Общий каталог SGS 2015 на русском - страница 70

2-х зубые фрезы. Плоский торец 3M 3XLM POS RH 3M • 3XLM ДОПУСКИ (мм) D1 = +0,000/–0,050 D2 = h6 ТЕХНИЧЕСКАЯ мм EDP NO. СЕРИЯ ИНФОРМАЦИЯ 82 ДИАМЕТР ДЛИНА ОБЩАЯ ДИАМЕТР БЕЗ ПОКРЫТИЯ Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A РЕЖ. ЧАСТИ РЕЖ. ЧАСТИ ДЛИНА ХВОСТОВИКА (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 1,0 4,0 38,0 3,0 40305 48628 48650 48671 3M 1,5 4,5 38,0 3,0 40309 48629 48651 48672 3M СТАЛЬ 2,0 6,3 38,0 3,0 40313 48630 48652 48673 3M НЕРЖАВЕЮЩАЯ СТАЛЬ 2,5 9,5 38,0 3,0 40317 48631 48653 48674 3M 3,0 12,0 38,0 3,0 40321 48632 48654 48675 3M ЧУГУН 3,0 25,0 75,0 3,0 43301 49427 49440 49453 3XLM ЖАРОПРОЧНЫЕ СПЛАВЫ 3,5 12,0 50,0 4,0 40325 48633 48655 48676 3M ТИТАН 4,0 14,0 50,0 4,0 40329 48634 48656 48677 3M 4,0 25,0 75,0 4,0 43303 49428 49441 49454 3XLM ЦВЕТНЫЕ СПЛАВЫ 4,5 16,0 50,0 6,0 40333 48635 48657 48678 3M ПЛАСТИКИ/КОМПОЗИТЫ 5,0 16,0 50,0 6,0 40337 48636 48658 48679 3M 5,0 25,0 75,0 5,0 43307 49430 49443 49456 3XLM 6,0 19,0 50,0 6,0 40341 48637 48659 48680 3M 6,0 25,0 75,0 6,0 43305 49429 49442 49455 3XLM 7,0 19,0 63,0 8,0 40345 48638 48660 48681 3M 8,0 20,0 63,0 8,0 40349 48639 48661 48682 3M 8,0 25,0 75,0 8,0 43315 49431 49444 49457 3XLM 9,0 22,0 75,0 10,0 40353 48640 48662 48683 3M 10,0 22,0 75,0 10,0 40357 48641 48663 48684 3M 10,0 38,0 100,0 10,0 43325 49432 49445 49458 3XLM 11,0 25,0 75,0 12,0 40361 48642 48664 48685 3M 12,0 25,0 75,0 12,0 40365 48643 48665 48686 3M 12,0 50,0 100,0 12,0 43335 49433 49446 49459 3XLM 12,0 75,0 150,0 12,0 43345 49434 49447 49460 3XLM 14,0 32,0 89,0 14,0 40369 48644 48666 48687 3M 14,0 75,0 150,0 14,0 43355 49435 49448 49461 3XLM 16,0 32,0 89,0 16,0 40373 48645 48667 48688 3M 16,0 75,0 150,0 16,0 43365 49436 49449 49462 3XLM 18,0 38,0 100,0 18,0 40377 48646 48668 48689 3M 18,0 75,0 150,0 18,0 43375 49437 49450 49463 3XLM 20,0 38,0 100,0 20,0 40381 48647 48669 48690 3M 20,0 75,0 150,0 20,0 43385 49438 49451 49464 3XLM 25,0 38,0 100,0 25,0 40385 48648 48670 48691 3M 25,0 75,0 150,0 25,0 43395 49439 49452 49465 3XLM 70 www.sgstool.com www.haltec.ru
