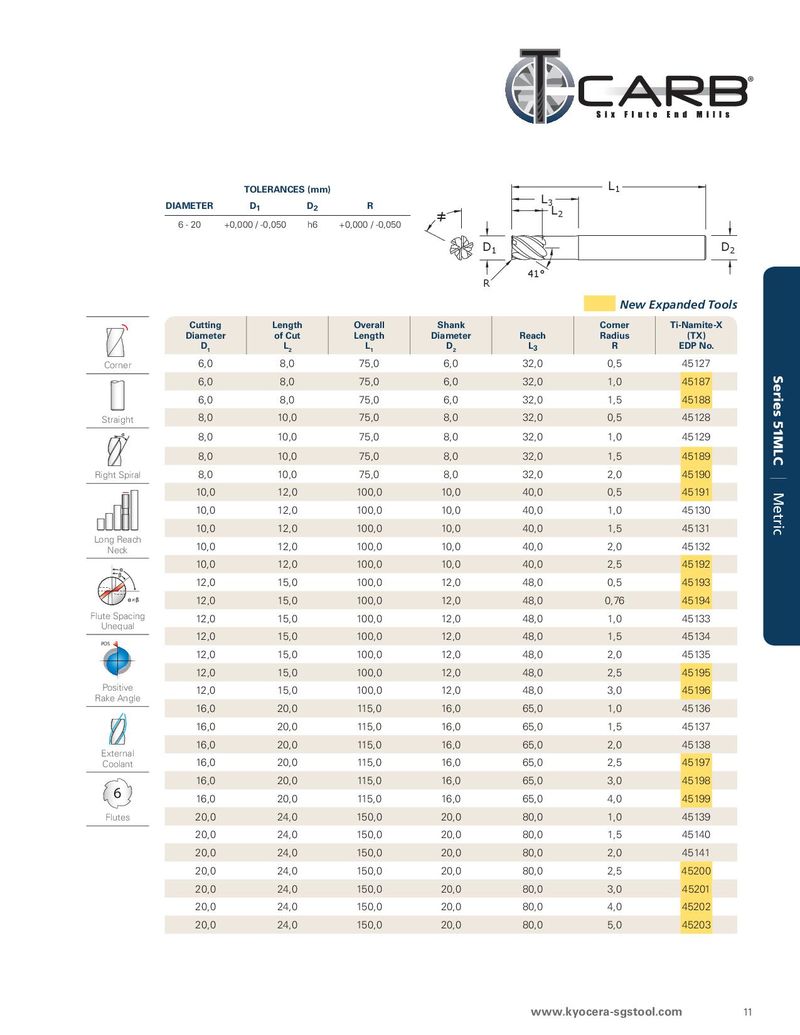

® TOLERANCES (mm) L1 DIAMETER D1 D2 R L3 L2 ≠ 6 - 20 +0,000 / -0,050 h6 +0,000 / -0,050 D1 D2 41° R    New Expanded Tools Cutting Length Overall Shank Corner Ti-Namite-X Diameter of Cut Length Diameter Reach Radius (TX) D1 L2 L1 D2 L3 R EDP No. Corner 6,0 8,0 75,0 6,0 32,0 0,5 45127 6,0 8,0 75,0 6,0 32,0 1,0 45187 Series 51MLC  6,0 8,0 75,0 6,0 32,0 1,5 45188 Straight 8,0 10,0 75,0 8,0 32,0 0,5 45128 8,0 10,0 75,0 8,0 32,0 1,0 45129 8,0 10,0 75,0 8,0 32,0 1,5 45189 Right Spiral 8,0 10,0 75,0 8,0 32,0 2,0 45190 |  10,0 12,0 100,0 10,0 40,0 0,5 45191 Metric 10,0 12,0 100,0 10,0 40,0 1,0 45130 10,0 12,0 100,0 10,0 40,0 1,5 45131 Long Reach 10,0 12,0 100,0 10,0 40,0 2,0 45132 Neck 10,0 12,0 100,0 10,0 40,0 2,5 45192 12,0 15,0 100,0 12,0 48,0 0,5 45193 ≠ 12,0 15,0 100,0 12,0 48,0 0,76 45194 Flute Spacing 12,0 15,0 100,0 12,0 48,0 1,0 45133 Unequal POS 12,0 15,0 100,0 12,0 48,0 1,5 45134 12,0 15,0 100,0 12,0 48,0 2,0 45135 12,0 15,0 100,0 12,0 48,0 2,5 45195 Positive 12,0 15,0 100,0 12,0 48,0 3,0 45196 Rake Angle 16,0 20,0 115,0 16,0 65,0 1,0 45136 16,0 20,0 115,0 16,0 65,0 1,5 45137 External 16,0 20,0 115,0 16,0 65,0 2,0 45138 Coolant 16,0 20,0 115,0 16,0 65,0 2,5 45197 16,0 20,0 115,0 16,0 65,0 3,0 45198 6 16,0 20,0 115,0 16,0 65,0 4,0 45199 Flutes 20,0 24,0 150,0 20,0 80,0 1,0 45139 20,0 24,0 150,0 20,0 80,0 1,5 45140 20,0 24,0 150,0 20,0 80,0 2,0 45141 20,0 24,0 150,0 20,0 80,0 2,5 45200 20,0 24,0 150,0 20,0 80,0 3,0 45201 20,0 24,0 150,0 20,0 80,0 4,0 45202 20,0 24,0 150,0 20,0 80,0 5,0 45203 www.kyocera-sgstool.com 11
