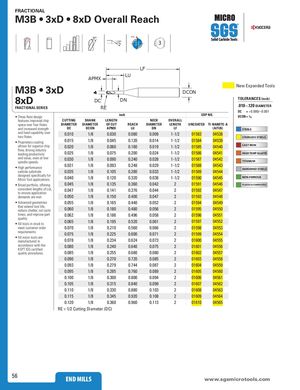

FRACTIONAL M3B • 3xD • 8xD Overall Reach 30° POS 15° 3 LF APMX LU M3B • 3xD    New Expanded ToolsDCON 8xD DC DN TOLERANCES (inch) FRACTIONAL SERIES RE .010–.120 DIAMETER DC = +0.000/–0.001 • Three flute design inch EDP NO. DCON = h6 features improved chip CUTTING SHANK LENGTH NECK OVERALL space over four flutes DIAMETER DIAMETER OF CUT REACH DIAMETER LENGTH UNCOATED TI-NAMITE-A and increased strength DC DCON APMX LU DN LF (AlTiN) STEELS and feed capability overtwo flutes.0.010 1/8 0.030 0.080 0.009 1-1/2 01583 04538 STAINLESS STEELS • Proprietary coating 0.015 1/8 0.045 0.120 0.014 1-1/2 01584 04539 allows for superior chip 0.020 1/8 0.060 0.160 0.019 1-1/2 01585 04540 CAST IRON flow, driving industryleading productivity0.0251/8 0.075 0.200 0.024 1-1/2 01586 04541 HIGH TEMP ALLOYS and value, even at low 0.030 1/8 0.090 0.240 0.028 1-1/2 01587 04542spindle speeds. TITANIUM • High performancecarbide substrate0.031 1/8 0.093 0.248 0.029 1-1/2 01588 045430.0351/80.1050.2800.0331-1/20158904544HARDENED STEELS designed specifically forMicro Tool applications.0.0401/8 0.120 0.320 0.038 1-1/2 01590 04545 NON-FERROUS • Broad portfolio, offering 0.045 1/8 0.135 0.360 0.042 2 01591 04546 PLASTICS/COMPOSITES consistent lengths of cut,to ensure application0.0471/8 0.141 0.376 0.044 2 01592 04547 demands are met. 0.050 1/8 0.150 0.400 0.047 2 01593 04548 • Advanced geometries 0.055 1/8 0.165 0.440 0.052 2 01594 04549 that extend tool life,reduce chatter, cut cycle0.0601/8 0.180 0.480 0.056 2 01595 04550 times, and improve part 0.062 1/8 0.186 0.496 0.058 2 01596 04551 quality. • All tools in stock to 0.065 1/8 0.195 0.520 0.061 2 01597 04552 meet customer order 0.070 1/8 0.210 0.560 0.066 2 01598 04553 requirements. 0.075 1/8 0.225 0.600 0.071 2 01599 04554 • All micro tools aremanufactured in0.078 1/8 0.234 0.624 0.073 2 01600 04555 accordance with theKSPT ISO certified0.080 1/8 0.240 0.640 0.075 2 01601 04556 quality procedures. 0.085 1/8 0.255 0.680 0.080 2 01602 04557 0.090 1/8 0.270 0.720 0.085 2 01603 04558 0.093 1/8 0.279 0.744 0.087 2 01604 04559 0.095 1/8 0.285 0.760 0.089 2 01605 04560 0.100 1/8 0.300 0.800 0.094 2 01606 04561 0.105 1/8 0.315 0.840 0.099 2 01607 04562 0.110 1/8 0.330 0.880 0.103 2 01608 04563 0.115 1/8 0.345 0.920 0.108 2 01609 04564 0.120 1/8 0.360 0.960 0.113 2 01610 04565 RE = 1/2 Cutting Diameter (DC) 56 END MILLS wwEwN.DsgMsImLLicSrotools.com
