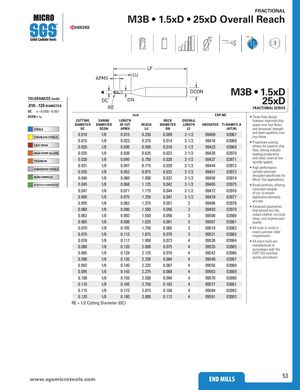

Каталог SGS микро инструмент 2021 - страница 53

FRACTIONAL M3B • 1.5xD • 25xD Overall Reach 30° POS 15° 3 LF APMX LU DCON M3B • 1.5xD TOLERANCES (inch) DC DN 25xD .010–.120 DIAMETER RE FRACTIONAL SERIES DC = +0.000/–0.001 DCON = h6 inch EDP NO. • Three flute design CUTTING SHANK LENGTH NECK OVERALL features improved chip DIAMETER DIAMETER OF CUT REACH DIAMETER LENGTH UNCOATED TI-NAMITE-A space over four flutes STEELS DC DCON APMX LU DN LF (AlTiN) and increased strength STAINLESS STEELS 0.010 1/8 0.015 0.250 0.009 2-1/2 09409 03967 and feed capability overtwo flutes. 0.015 1/8 0.023 0.375 0.014 2-1/2 09416 03968 • Proprietary coating CAST IRON 0.020 1/8 0.030 0.500 0.018 2-1/2 09423 03969 allows for superior chip flow, driving industry HIGH TEMP ALLOYS 0.025 1/8 0.038 0.625 0.023 2-1/2 09430 03970 leading productivity TITANIUM 0.030 1/8 0.045 0.750 0.028 2-1/2 09437 03971 and value, even at lowspindle speeds. HARDENED STEELS 0.031 1/8 0.047 0.775 0.029 2-1/2 09444 03972 • High performance0.0351/80.0530.8750.0322-1/20945103973carbide substrate NON-FERROUS 0.040 1/8 0.060 1.000 0.037 2-1/2 09458 03974 designed specifically forMicro Tool applications. PLASTICS/COMPOSITES 0.045 1/8 0.068 1.125 0.042 2-1/2 09465 03975 • Broad portfolio, offering 0.047 1/8 0.071 1.175 0.044 2-1/2 09472 03976 consistent lengthsof cut, to ensure 0.050 1/8 0.075 1.250 0.047 2-1/2 09479 03977 application demands 0.055 1/8 0.083 1.375 0.051 3 09486 03978 are met. 0.060 1/8 0.090 1.500 0.056 3 09493 03979 • Advanced geometries that extend tool life, 0.062 1/8 0.093 1.550 0.058 3 09500 03980 reduce chatter, cut cycletimes, and improve part 0.065 1/8 0.098 1.625 0.061 3 09507 03981 quality. 0.070 1/8 0.105 1.750 0.065 3 09514 03982 • All tools in stock to 0.075 1/8 0.113 1.875 0.070 3 09521 03983 meet customer orderrequirements. 0.078 1/8 0.117 1.950 0.073 4 09528 03984 • All micro tools are 0.080 1/8 0.120 2.000 0.075 4 09535 03985 manufactured inaccordance with the 0.085 1/8 0.128 2.125 0.079 4 09542 03986 KSPT ISO certified 0.090 1/8 0.135 2.250 0.084 4 09549 03987 quality procedures. 0.093 1/8 0.140 2.325 0.087 4 09556 03988 0.095 1/8 0.143 2.375 0.089 4 09563 03989 0.100 1/8 0.150 2.500 0.094 4 09570 03990 0.110 1/8 0.165 2.750 0.103 4 09577 03991 0.115 1/8 0.173 2.875 0.108 4 09584 03992 0.120 1/8 0.180 3.000 0.112 4 09591 03993 RE = 1/2 Cutting Diameter (DC) www.sgsmicErNoDtoMoIlLsL.cSom END MILLS 53
