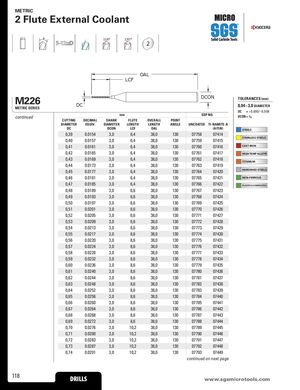

METRIC 2 Flute External Coolant 118° 130° 2 OAL LCF M226METRIC SERIES DC DCON TOLERANCES (mm)0,04–3,0 DIAMETER DC = +0,000/–0,008 continued mm EDP NO. DCON = h6 CUTTING DECIMAL SHANK FLUTE OVERALL POINT DIAMETER EQUIV. DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A DC DCON LCF OAL (AlTiN) STEELS 0,39 0.0154 3,0 6,4 38,0 130 07758 07414 0,40 0.0157 3,0 6,4 38,0 130 07759 07415 STAINLESS STEELS 0,41 0.0161 3,0 6,4 38,0 130 07760 07416 CAST IRON 0,42 0.0165 3,0 6,4 38,0 130 07761 07417 HIGH TEMP ALLOYS 0,43 0.0169 3,0 6,4 38,0 130 07762 07418 TITANIUM 0,44 0.0173 3,0 6,4 38,0 130 07763 07419 0,45 0.0177 3,0 6,4 38,0 130 07764 07420 HARDENED STEELS 0,46 0.0181 3,0 6,4 38,0 130 07765 07421 NON-FERROUS 0,47 0.0185 3,0 6,4 38,0 130 07766 07422 PLASTICS/COMPOSITES 0,48 0.0189 3,0 6,6 38,0 130 07767 07423 0,49 0.0193 3,0 6,6 38,0 130 07768 07424 0,50 0.0197 3,0 6,6 38,0 130 07769 07425 0,51 0.0201 3,0 6,6 38,0 130 07770 07426 0,52 0.0205 3,0 6,6 38,0 130 07771 07427 0,53 0.0209 3,0 6,6 38,0 130 07772 07428 0,54 0.0213 3,0 6,6 38,0 130 07773 07429 0,55 0.0217 3,0 8,6 38,0 130 07774 07430 0,56 0.0220 3,0 8,6 38,0 130 07775 07431 0,57 0.0224 3,0 8,6 38,0 130 07776 07432 0,58 0.0228 3,0 8,6 38,0 130 07777 07433 0,59 0.0232 3,0 8,6 38,0 130 07778 07434 0,60 0.0236 3,0 8,6 38,0 130 07779 07435 0,61 0.0240 3,0 8,6 38,0 130 07780 07436 0,62 0.0244 3,0 8,6 38,0 130 07781 07437 0,63 0.0248 3,0 8,6 38,0 130 07782 07438 0,64 0.0252 3,0 8,6 38,0 130 07783 07439 0,65 0.0256 3,0 8,6 38,0 130 07784 07440 0,66 0.0260 3,0 8,6 38,0 130 07785 07441 0,67 0.0264 3,0 8,6 38,0 130 07786 07442 0,68 0.0268 3,0 8,6 38,0 130 07787 07443 0,69 0.0272 3,0 8,6 38,0 130 07788 07444 0,70 0.0276 3,0 10,2 38,0 130 07789 07445 0,71 0.0280 3,0 10,2 38,0 130 07790 07446 0,72 0.0283 3,0 10,2 38,0 130 07791 07447 0,73 0.0287 3,0 10,2 38,0 130 07792 07448 0,74 0.0291 3,0 10,2 38,0 130 07793 07449 continued on next page 118 DRILLS wwwD.sRgILsLmSicrotools.com
