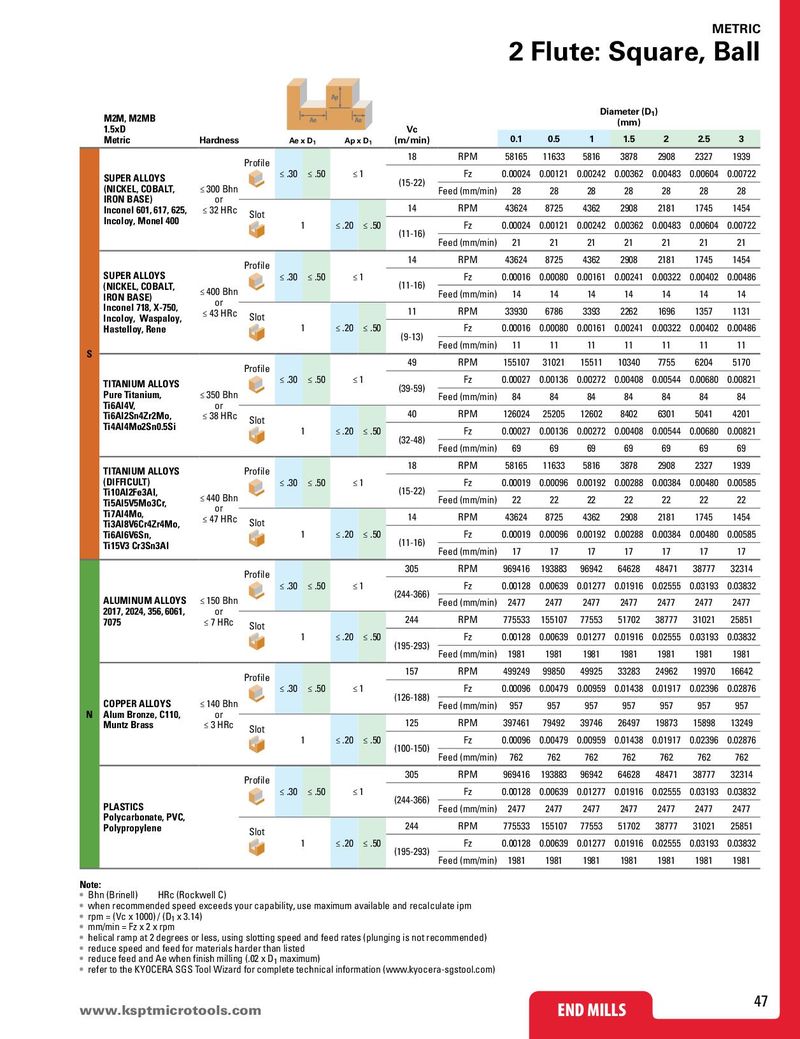

METRIC 2 Flute: Square, Ball Ap M2M, M2MB Ae Ae Diameter (D1) 1.5xD Vc (mm) Metric Hardness Ae x D1 Ap x D1 (m/min) 0.1 0.5 1 1.5 2 2.5 3 Profile 18 RPM 58165 11633 5816 3878 2908 2327 1939 SUPER ALLOYS ≤ .30 ≤ .50 ≤1 (15-22) Fz 0.00024 0.00121 0.00242 0.00362 0.00483 0.00604 0.00722 (NICKEL, COBALT, ≤ 300 Bhn Feed (mm/min) 28 28 28 28 28 28 28 or IRON BASE) ≤ 32 HRc 14 RPM 43624 8725 4362 2908 2181 1745 1454 Inconel 601, 617, 625, Slot Incoloy, Monel 400 1 ≤ .20 ≤ .50 Fz 0.00024 0.00121 0.00242 0.00362 0.00483 0.00604 0.00722 (11-16) Feed (mm/min) 21 21 21 21 21 21 21 Profile 14 RPM 43624 8725 4362 2908 2181 1745 1454 SUPER ALLOYS ≤ .30 ≤ .50 ≤1 (11-16) Fz 0.00016 0.00080 0.00161 0.00241 0.00322 0.00402 0.00486 (NICKEL, COBALT, ≤ 400 Bhn Feed (mm/min) 14 14 14 14 14 14 14 IRON BASE) or Inconel 718, X-750, ≤ 43 HRc Slot 11 RPM 33930 6786 3393 2262 1696 1357 1131 Incoloy, Waspaloy, 1 ≤ .20 ≤ .50 Fz 0.00016 0.00080 0.00161 0.00241 0.00322 0.00402 0.00486 Hastelloy, Rene (9-13) S Feed (mm/min) 11 11 11 11 11 11 11 Profile 49 RPM 155107 31021 15511 10340 7755 6204 5170 TITANIUM ALLOYS ≤ .30 ≤ .50 ≤1 (39-59) Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00821 Pure Titanium, ≤ 350 Bhn Feed (mm/min) 84 84 84 84 84 84 84 or Ti6Al4V, ≤ 38 HRc 40 RPM 126024 25205 12602 8402 6301 5041 4201 Ti6Al2Sn4Zr2Mo, Slot Ti4Al4Mo2Sn0.5Si 1 ≤ .20 ≤ .50 Fz 0.00027 0.00136 0.00272 0.00408 0.00544 0.00680 0.00821 (32-48) Feed (mm/min) 69 69 69 69 69 69 69 TITANIUM ALLOYS Profile 18 RPM 58165 11633 5816 3878 2908 2327 1939 (DIFFICULT) ≤ .30 ≤ .50 ≤1 (15-22) Fz 0.00019 0.00096 0.00192 0.00288 0.00384 0.00480 0.00585 Ti10Al2Fe3Al, ≤ 440 Bhn Feed (mm/min) 22 22 22 22 22 22 22 Ti5Al5V5Mo3Cr, or Ti7Al4Mo, ≤ 47 HRc Slot 14 RPM 43624 8725 4362 2908 2181 1745 1454 Ti3Al8V6Cr4Zr4Mo, 1 ≤ .20 ≤ .50 Fz 0.00019 0.00096 0.00192 0.00288 0.00384 0.00480 0.00585 Ti6Al6V6Sn, (11-16) Ti15V3 Cr3Sn3Al Feed (mm/min) 17 17 17 17 17 17 17 Profile 305 RPM 969416 193883 96942 64628 48471 38777 32314 ≤ .30 ≤ .50 ≤1 (244-366) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832 ALUMINUM ALLOYS ≤ 150 Bhn Feed (mm/min) 2477 2477 2477 2477 2477 2477 2477 or 2017, 2024, 356, 6061, ≤ 7 HRc 244 RPM 775533 155107 77553 51702 38777 31021 25851 7075 Slot 1 ≤ .20 ≤ .50 (195-293) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832 Feed (mm/min) 1981 1981 1981 1981 1981 1981 1981 Profile 157 RPM 499249 99850 49925 33283 24962 19970 16642 ≤ .30 ≤ .50 ≤1 (126-188) Fz 0.00096 0.00479 0.00959 0.01438 0.01917 0.02396 0.02876 COPPER ALLOYS ≤ 140 Bhn Feed (mm/min) 957 957 957 957 957 957 957 or N Alum Bronze, C110, ≤ 3 HRc 125 RPM 397461 79492 39746 26497 19873 15898 13249 Muntz Brass Slot 1 ≤ .20 ≤ .50 (100-150) Fz 0.00096 0.00479 0.00959 0.01438 0.01917 0.02396 0.02876 Feed (mm/min) 762 762 762 762 762 762 762 Profile 305 RPM 969416 193883 96942 64628 48471 38777 32314 ≤ .30 ≤ .50 ≤1 (244-366) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832 PLASTICS Feed (mm/min) 2477 2477 2477 2477 2477 2477 2477 Polycarbonate, PVC, 244 RPM 775533 155107 77553 51702 38777 31021 25851 Polypropylene Slot 1 ≤ .20 ≤ .50 (195-293) Fz 0.00128 0.00639 0.01277 0.01916 0.02555 0.03193 0.03832 Feed (mm/min) 1981 1981 1981 1981 1981 1981 1981 Note: t
Bhn (Brinell) HRc (Rockwell C) t
when recommended speed exceeds your capability, use maximum available and recalculate ipm t
rpm = (Vc x 1000) / (D1 x 3.14) t
mm/min = Fz x 2 x rpm t
helical ramp at 2 degrees or less, using slotting speed and feed rates (plunging is not recommended) t
reduce speed and feed for materials harder than listed t
reduce feed and Ae when finish milling (.02 x D1 maximum) t
refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com) www.ksptmEicNrDotMoIoLlLsS.com END MILLS 47
