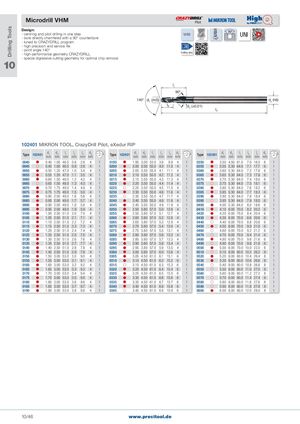

Общий каталог PRECITOOL - страница 51

Drilling Tools Microdrill VHM Design:- centring and pilot drilling in one step VHM 90° UNI - bore directly chamfered with a 90° counterbore coated 140° - tuned to CRAZYDRILL program - high precision and service life - point angle 140° - high-performance geometry CRAZYDRILL Cutting data - special digressive cutting geometry for optimal chip removal 10 l4 90° 140° d (m5)1 d2 (h6) d3 (±0,01) 102401 MIKRON TOOL, CrazyDrill Pilot, eXedur RIP Type 102401 d1mm d3mm l1mm l2mm l4mm d2mm Type 102401 d1mm d3mm l1mm l2mm l4mm d2mm Type 102401 d1mm d3mm l1mm l2mm l4mm d2mm 0040  0.40 1.00 46.5 0.8 2.8 4 1 0195  1.95 3.00 53.0 3.9  9.9 4 1 0350  3.50 4.50 61.0  7.0 16.0 6 1 0045  0.45 1.00 46.5 0.9 2.9 4 1 0200  2.00 3.50 55.0 4.0 11.0 4 1 0355  3.55 5.30 64.0  7.1 17.7 6 1 0050  0.50 1.20 47.0 1.0 3.4 4 1 0205  2.05 3.50 55.0 4.1 11.1 4 1 0360  3.60 5.30 64.0  7.2 17.8 6 1 0055  0.55 1.20 47.0 1.1 3.5 4 1 0210  2.10 3.50 55.0 4.2 11.2 4 1 0365  3.65 5.30 64.0  7.3 17.9 6 1 0060  0.60 1.50 48.0 1.2 4.2 4 1 0215  2.15 3.50 55.0 4.3 11.3 4 1 0370  3.70 5.30 64.0  7.4 18.0 6 1 0065  0.65 1.50 48.0 1.3 4.3 4 1 0220  2.20 3.50 55.0 4.4 11.4 4 1 0375  3.75 5.30 64.0  7.5 18.1 6 1 0070  0.70 1.75 49.0 1.4 4.9 4 1 0225  2.25 3.50 55.0 4.5 11.5 4 1 0380  3.80 5.30 64.0  7.6 18.2 6 1 0075  0.75 1.75 49.0 1.5 5.0 4 1 0230  2.30 3.50 55.0 4.6 11.6 4 1 0385  3.85 5.30 64.0  7.7 18.3 6 1 0080  0.80 2.00 49.0 1.6 5.6 4 1 0235  2.35 3.50 55.0 4.7 11.7 4 1 0390  3.90 5.30 64.0  7.8 18.4 6 1 0085  0.85 2.00 49.0 1.7 5.7 4 1 0240  2.40 3.50 55.0 4.8 11.8 4 1 0395  3.95 5.30 64.0  7.9 18.5 6 1 0090  0.90 2.00 49.0 1.8 5.8 4 1 0245  2.45 3.50 55.0 4.9 11.9 4 1 0400  4.00 5.30 64.0  8.0 18.6 6 1 0095  0.95 2.00 49.0 1.9 5.9 4 1 0250  2.50 3.80 57.0 5.0 12.6 4 1 0410  4.10 6.00 70.0  8.2 20.2 6 1 0100  1.00 2.50 51.0 2.0 7.0 4 1 0255  2.55 3.80 57.0 5.1 12.7 4 1 0420  4.20 6.00 70.0  8.4 20.4 6 1 0105  1.05 2.50 51.0 2.1 7.1 4 1 0260  2.60 3.80 57.0 5.2 12.8 4 1 0430  4.30 6.00 70.0  8.6 20.6 6 1 0110  1.10 2.50 51.0 2.2 7.2 4 1 0265  2.65 3.80 57.0 5.3 12.9 4 1 0440  4.40 6.00 70.0  8.8 20.8 6 1 0115  1.15 2.50 51.0 2.3 7.3 4 1 0270  2.70 3.80 57.0 5.4 13.0 4 1 0450  4.50 6.00 70.0  9.0 21.0 6 1 0120  1.20 2.50 51.0 2.4 7.4 4 1 0275  2.75 3.80 57.0 5.5 13.1 4 1 0460  4.60 6.00 70.0  9.2 21.2 6 1 0125  1.25 2.50 51.0 2.5 7.5 4 1 0280  2.80 3.80 57.0 5.6 13.2 4 1 0470  4.70 6.00 70.0  9.4 21.4 6 1 0130  1.30 2.50 51.0 2.6 7.6 4 1 0285  2.85 3.80 57.0 5.7 13.3 4 1 0480  4.80 6.00 70.0  9.6 21.6 6 1 0135  1.35 2.50 51.0 2.7 7.7 4 1 0290  2.90 3.80 57.0 5.8 13.4 4 1 0490  4.90 6.00 70.0  9.8 21.8 6 1 0140  1.40 2.50 51.0 2.8 7.8 4 1 0295  2.95 3.80 57.0 5.9 13.5 4 1 0500  5.00 6.00 70.0 10.0 22.0 6 1 0145  1.45 2.50 51.0 2.9 7.9 4 1 0300  3.00 3.80 57.0 6.0 13.6 4 1 0510  5.10 8.00 80.0 10.2 26.2 8 1 0150  1.50 3.00 53.0 3.0 9.0 4 1 0305  3.05 4.50 61.0 6.1 15.1 6 1 0520  5.20 8.00 80.0 10.4 26.4 8 1 0155  1.55 3.00 53.0 3.1 9.1 4 1 0310  3.10 4.50 61.0 6.2 15.2 6 1 0530  5.30 8.00 80.0 10.6 26.6 8 1 0160  1.60 3.00 53.0 3.2 9.2 4 1 0315  3.15 4.50 61.0 6.3 15.3 6 1 0540  5.40 8.00 80.0 10.8 26.8 8 1 0165  1.65 3.00 53.0 3.3 9.3 4 1 0320  3.20 4.50 61.0 6.4 15.4 6 1 0550  5.50 8.00 80.0 11.0 27.0 8 1 0170  1.70 3.00 53.0 3.4 9.4 4 1 0325  3.25 4.50 61.0 6.5 15.5 6 1 0560  5.60 8.00 80.0 11.2 27.2 8 1 0175  1.75 3.00 53.0 3.5 9.5 4 1 0330  3.30 4.50 61.0 6.6 15.6 6 1 0570  5.70 8.00 80.0 11.4 27.4 8 1 0180  1.80 3.00 53.0 3.6 9.6 4 1 0335  3.35 4.50 61.0 6.7 15.7 6 1 0580  5.80 8.00 80.0 11.6 27.6 8 1 0185  1.85 3.00 53.0 3.7 9.7 4 1 0340  3.40 4.50 61.0 6.8 15.8 6 1 0590  5.90 8.00 80.0 11.8 27.8 8 1 0190  1.90 3.00 53.0 3.8 9.8 4 1 0345  3.45 4.50 61.0 6.9 15.9 6 1 0600  6.00 8.00 80.0 12.0 28.0 8 1 10/46 www.precitool.de
