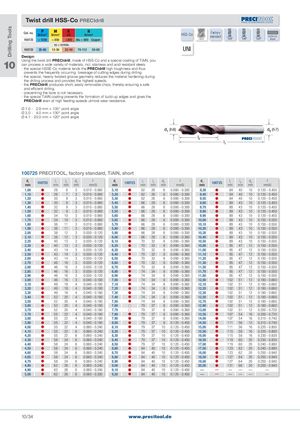

Drilling Tools Twist drill HSS-Co PRECIdrill Cat. no. PN/mm2 MN/mm2 KHB NN/mm2 HSS-Co Factorystandard 6335 HA 100725 < 1200 < 850 <300 Alu < 600 Copper coated 120° 130° 135° shank vc = m/min. 100725 30-60 12-30 32-40 70-112 50-80 UNI Design: 10 Using the twist drill PRECIdrill, made of HSS-Co and a special coating of TiAlN, youcan process a wide variety of materials, incl. stainless and acid-resistant steels- the special HSSE-Co material lends the PRECIdrill high toughness and thus prevents the frequently occurring breakage of cutting edges during drilling. - the special, heavily twisted groove geometry reduces the material hardening during the drilling process and provides the highest speeds. - the PRECIdrill produces short, easily removable chips, thereby ensuring a safe and efficient drilling. - precentring the bore is not necessary - the special TiAIN coating prevents the formation of build-up edges and gives the PRECIdrill even at high feeding speeds utmost wear resistance. Ø 1.0 -   2.9 mm = 135° point angle Ø 3.0 -   4.0 mm = 130° point angle Ø 4.1 - 20.0 mm = 120° point angle (h8) (h7) 100725 PRECITOOL, factory standard, TiAlN, short d1mm 100725 l1mm l2mm d2mm fmm/U d1mm 100725 l1mm l2mm d2mm fmm/U d1mm 100725 l1mm l2mm d2mm fmm/U 1,00  26 6 3 0.010 - 0.060 5,10  62 26 6 0.080 - 0.300 9,30  84 40 10 0.120 - 0.450 1,10  26 7 3 0.010 - 0.060 5,20  62 26 6 0.080 - 0.300 9,40  84 40 10 0.120 - 0.450 1,20  30 8 3 0.010 - 0.060 5,30  62 26 6 0.080 - 0.300 9,50  84 40 10 0.120 - 0.450 1,30  30 8 3 0.010 - 0.060 5,40  66 28 6 0.080 - 0.300 9,60  89 43 10 0.120 - 0.450 1,40  32 9 3 0.010 - 0.060 5,50  66 28 6 0.080 - 0.300 9,70  89 43 10 0.120 - 0.450 1,50  32 9 3 0.010 - 0.060 5,55  66 28 6 0.080 - 0.300 9,80  89 43 10 0.120 - 0.450 1,60  34 10 3 0.010 - 0.060 5,60  66 28 6 0.080 - 0.300 9,90  89 43 10 0.120 - 0.450 1,70  34 10 3 0.010 - 0.060 5,65  66 28 6 0.080 - 0.300 10,00  89 43 10 0.150 - 0.550 1,80  36 11 3 0.010 - 0.060 5,70  66 28 6 0.080 - 0.300 10,10  89 43 10 0.150 - 0.550 1,90  36 11 3 0.010 - 0.060 5,80  66 28 6 0.080 - 0.300 10,20  89 43 10 0.150 - 0.550 2,00  38 12 3 0.030 - 0.120 5,90  66 28 6 0.080 - 0.300 10,30  89 43 10 0.150 - 0.550 2,10  38 12 3 0.030 - 0.120 6,00  66 28 6 0.090 - 0.360 10,40  89 43 10 0.150 - 0.550 2,20  40 13 3 0.030 - 0.120 6,10  70 32 8 0.090 - 0.360 10,50  89 43 10 0.150 - 0.550 2,30  40 13 3 0.030 - 0.120 6,20  70 32 8 0.090 - 0.360 10,80  95 47 12 0.150 - 0.550 2,40  43 14 3 0.030 - 0.120 6,30  70 32 8 0.090 - 0.360 11,00  95 47 12 0.150 - 0.550 2,50  43 14 3 0.030 - 0.120 6,40  70 32 8 0.090 - 0.360 11,10  95 47 12 0.150 - 0.550 2,60  43 14 3 0.030 - 0.120 6,50  70 32 8 0.090 - 0.360 11,20  95 47 12 0.150 - 0.550 2,70  46 16 3 0.030 - 0.120 6,60  70 32 8 0.090 - 0.360 11,30  95 47 12 0.150 - 0.550 2,80  46 16 3 0.030 - 0.120 6,70  70 32 8 0.090 - 0.360 11,50  95 47 12 0.150 - 0.550 2,85  46 16 3 0.030 - 0.120 6,80  74 34 8 0.090 - 0.360 11,70  95 47 12 0.150 - 0.550 2,90  46 16 3 0.030 - 0.120 6,90  74 34 8 0.090 - 0.360 11,80  95 47 12 0.150 - 0.550 3,00  46 16 3 0.040 - 0.180 7,00  74 34 8 0.090 - 0.360 12,00  102 51 12 0.180 - 0.660 3,10  49 18 4 0.040 - 0.180 7,10  74 34 8 0.090 - 0.360 12,10  102 51 12 0.180 - 0.660 3,20  49 18 4 0.040 - 0.180 7,20  74 34 8 0.090 - 0.360 12,20  102 51 12 0.180 - 0.660 3,30  49 18 4 0.040 - 0.180 7,30  74 34 8 0.090 - 0.360 12,30  102 51 12 0.180 - 0.660 3,40  52 20 4 0.040 - 0.180 7,40  74 34 8 0.090 - 0.360 12,50  102 51 12 0.180 - 0.660 3,50  52 20 4 0.040 - 0.180 7,50  74 34 8 0.090 - 0.360 12,70  102 51 12 0.180 - 0.660 3,60  52 20 4 0.040 - 0.180 7,60  79 37 8 0.090 - 0.360 12,90  102 51 12 0.180 - 0.660 3,70  52 20 4 0.040 - 0.180 7,70  79 37 8 0.090 - 0.360 13,00  102 51 12 0.200 - 0.720 3,78  55 22 4 0.040 - 0.180 7,80  79 37 8 0.090 - 0.360 13,50  107 54 16 0.200 - 0.720 3,80  55 22 4 0.040 - 0.180 7,90  79 37 8 0.090 - 0.360 14,00  107 54 16 0.210 - 0.740 3,90  55 22 4 0.040 - 0.180 8,00  79 37 8 0.120 - 0.450 14,50  111 56 12 0.210 - 0.740 4,00  55 22 4 0.060 - 0.240 8,10  79 37 10 0.120 - 0.450 15,00  111 56 16 0.220 - 0.800 4,10  55 22 6 0.060 - 0.240 8,20  79 37 10 0.120 - 0.450 15,50  115 58 16 0.220 - 0.800 4,20  55 22 6 0.060 - 0.240 8,30  79 37 10 0.120 - 0.450 16,00  115 58 16 0.230 - 0.830 4,30  58 24 6 0.060 - 0.240 8,40  79 37 10 0.120 - 0.450 16,50  119 60 20 0.230 - 0.830 4,40  58 24 6 0.060 - 0.240 8,50  79 37 10 0.120 - 0.450 17,00  119 60 20 0.240 - 0.880 4,50  58 24 6 0.060 - 0.240 8,60  84 40 10 0.120 - 0.450 17,50  123 62 20 0.240 - 0.880 4,60  58 24 6 0.060 - 0.240 8,70  84 40 10 0.120 - 0.450 18,00  123 62 20 0.250 - 0.940 4,65  58 24 6 0.060 - 0.240 8,80  84 40 10 0.120 - 0.450 18,50  127 64 20 0.250 - 0.940 4,70  58 24 6 0.060 - 0.240 8,90  84 40 10 0.120 - 0.450 19,00  127 64 20 0.250 - 0.940 4,80  62 26 6 0.060 - 0.240 9,00  84 40 10 0.120 - 0.450 20,00  131 66 20 0.250 - 0.940 4,90  62 26 6 0.060 - 0.240 9,10  84 40 10 0.120 - 0.450 — — — — — — 5,00  62 26 6 0.080 - 0.300 9,20  84 40 10 0.120 - 0.450 — — — — — — 10/34 www.precitool.de
