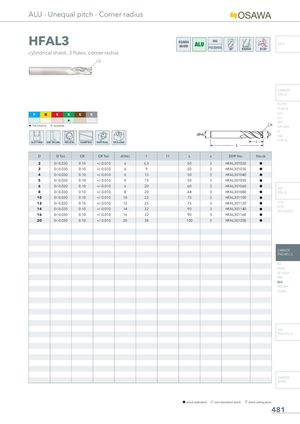

ALU - Unequal pitch - Corner radius HFAL3 OSAWANORM POLISHED INFO cylindrical shank, 3 flutes, corner radius CR CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H HRC H 1st choice I suitable CR SUH MINI HL HSD SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL DRILLING C-SD-TA D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 2 0/-0.030 0.10 +/-0.010 6 6.5 50 3 HFAL301020 h 3 0/-0.030 0.10 +/-0.010 6 9 50 3 HFAL301030 h 4 0/-0.030 0.10 +/-0.010 6 12 50 3 HFAL301040 h 5 0/-0.030 0.10 +/-0.010 6 15 50 3 HFAL301050 h 6 0/-0.030 0.10 +/-0.010 6 20 60 3 HFAL301060 h HSS 8 0/-0.030 0.10 +/-0.010 8 20 64 3 HFAL301080 h DRILLS 10 0/-0.030 0.10 +/-0.010 10 22 75 3 HFAL301100 h 12 0/-0.030 0.10 +/-0.010 12 25 75 3 HFAL301120 h LFTA 14 0/-0.030 0.10 +/-0.010 14 32 90 3 HFAL301140 h SUTAHSS-HSS/CO 16 0/-0.030 0.10 +/-0.010 16 32 90 3 HFAL301160 h 20 0/-0.030 0.10 +/-0.010 20 38 100 3 HFAL301200 h CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 481
