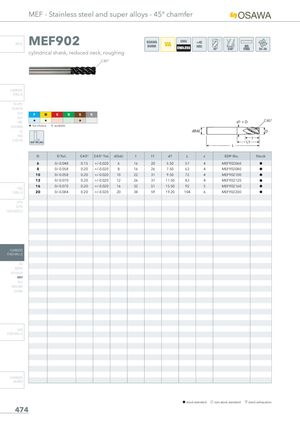

MEF - Stainless steel and super alloys - 45° chamfer INFO MEF902 OSAWA <45NORMHRC cylindrical shank, reduced neck, roughing C45° CARBIDE DRILLS PU-HPU TA-4HTA SUH P M K N S H ALH HRC H H H C45° SUH MINI H 1st choice I suitable HL HSD C-SD-TA SIDE MILLING D D Tol. C45° C45° Tol. d(h6) l l1 d1 L z EDP No. Stock 6 0/-0.048 0.15 +/-0.020 6 16 20 5.50 57 4 MEF902060 h 8 0/-0.058 0.20 +/-0.020 8 16 26 7.50 63 4 MEF902080 h 10 0/-0.058 0.20 +/-0.020 10 22 31 9.50 72 4 MEF902100 h 12 0/-0.070 0.20 +/-0.020 12 26 37 11.50 83 4 MEF902120 h 16 0/-0.070 0.20 +/-0.020 16 32 51 15.50 92 5 MEF902160 h HSS DRILLS 20 0/-0.084 0.20 +/-0.020 20 38 59 19.20 104 6 MEF902200 h LFTA SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-stock standard m stock exhaustion 474
