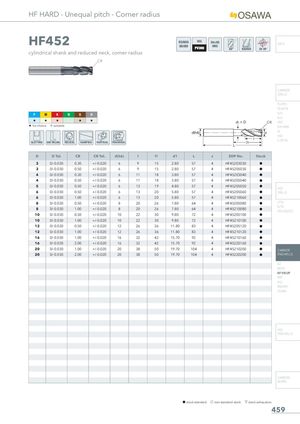

Общий каталог Osawa 2021 - страница 460

HF HARD - Unequal pitch - Corner radius HF452 OSAWANORM INFO cylindrical shank and reduced neck, corner radius CR CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H H H H H CR HRC H 1st choice I suitable SUH MINI HL HSD SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL TROCHOIDAL C-SD-TA D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock 3 0/-0.030 0.30 +/-0.020 6 9 15 2.80 57 4 HF45203030 h 3 0/-0.030 0.50 +/-0.020 6 9 15 2.80 57 4 HF45205030 h 4 0/-0.030 0.30 +/-0.020 6 11 18 3.80 57 4 HF45203040 h 4 0/-0.030 0.50 +/-0.020 6 11 18 3.80 57 4 HF45205040 h 5 0/-0.030 0.50 +/-0.020 6 13 19 4.80 57 4 HF45205050 h HSS 6 0/-0.030 0.50 +/-0.020 6 13 20 5.80 57 4 HF45205060 h DRILLS 6 0/-0.030 1.00 +/-0.020 6 13 20 5.80 57 4 HF45210060 h 8 0/-0.030 0.50 +/-0.020 8 20 26 7.80 64 4 HF45205080 h LFTA 8 0/-0.030 1.00 +/-0.020 8 20 26 7.80 64 4 HF45210080 h SUTAHSS-HSS/CO 10 0/-0.030 0.50 +/-0.020 10 22 30 9.80 72 4 HF45205100 h 10 0/-0.030 1.00 +/-0.020 10 22 30 9.80 72 4 HF45210100 h 12 0/-0.030 0.50 +/-0.020 12 26 36 11.80 83 4 HF45205120 h 12 0/-0.030 1.00 +/-0.020 12 26 36 11.80 83 4 HF45210120 h 16 0/-0.030 1.00 +/-0.020 16 32 42 15.70 92 4 HF45210160 h 16 0/-0.030 2.00 +/-0.020 16 32 42 15.70 92 4 HF45220160 h 20 0/-0.030 1.00 +/-0.020 20 38 50 19.70 104 4 HF45210200 h CARBIDE 20 0/-0.030 2.00 +/-0.020 20 38 50 19.70 104 4 HF45220200 h END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 459
