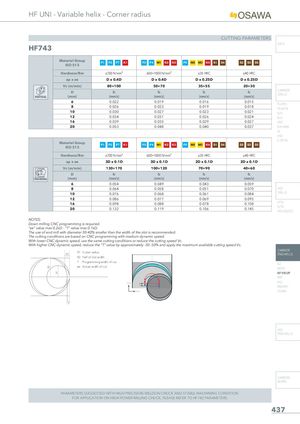

HF UNI - Variable helix - Corner radius CUTTING PARAMETERS INFO HF743 Material GroupISO 513 P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC ap x ae D x 0.4D D x 0.4D D x 0.25D D x 0.25D Vc (m/min) 80÷100 50÷70 35÷55 20÷30 D fzVERTICAL(mm)(mm/z) fz(mm/z) fz(mm/z) fz(mm/z) CARBIDEDRILLS 6 0.022 0.019 0.016 0.015 PU-HPU 8 0.026 0.023 0.019 0.018 TA-4HTA 10 0.030 0.027 0.023 0.021 SUH 12 0.034 0.031 0.026 0.024 ALH 16 0.039 0.035 0.029 0.027 HRC 20 0.053 0.048 0.040 0.037 SUH MINI HL HSD C-SD-TA Material GroupISO 513 P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC ap x ae 3D x 0.1D 3D x 0.1D 2D x 0.1D 2D x 0.1D Vc (m/min) 130÷170 100÷120 70÷90 40÷60 D fz fz fz fz TROCHOIDAL (mm) (mm/z) (mm/z) (mm/z) (mm/z) 6 0.054 0.049 0.043 0.059 8 0.064 0.058 0.051 0.070 HSS 10 0.076 0.068 0.061 0.084 DRILLS 12 0.086 0.077 0.069 0.095 16 0.098 0.088 0.078 0.108 LFTA 20 0.132 0.119 0.106 0.145 SUTAHSS-HSS/CO NOTES: Down milling CNC programming is required. “ae” value max 0.2xD - “T” value max 0.1xD. The use of end mill with diameter 30-40% smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the “T” value by approximately -30 -50% and apply the maximum available cutting speed Vc. CARBIDE ae R1 Cutter radius END-MILLS R2 Half of slot width T Programming width of cut G2 ae Actual width of cut MDTA HF VH/UP MEF Y (+) Y ALUMEX/MH X (+) UH/MH T HSS END-MILLS CARBIDE BURRS PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF742 PARAMETERS. 437 R2 R1
