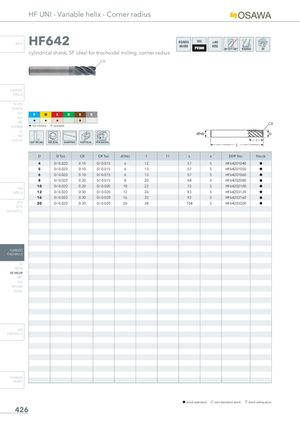

HF UNI - Variable helix - Corner radius INFO HF642 OSAWANORM cylindrical shank, 5F ideal for trochoidal milling, corner radius CR CARBIDE DRILLS PU-HPU TA-4HTA SUH P M K N S H ALH HRC H H H HSUH MINIH 1st choiceI suitable CR HL HSD C-SD-TA SIDE MILLING HELICAL RAMPING VERTICAL TROCHOIDAL D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 4 0/-0.020 0.10 0/-0.015 6 12 57 5 HF64201040 h 5 0/-0.020 0.10 0/-0.015 6 13 57 5 HF64201050 h 6 0/-0.020 0.10 0/-0.015 6 13 57 5 HF64201060 h 8 0/-0.020 0.20 0/-0.015 8 20 64 5 HF64202080 h 10 0/-0.020 0.20 0/-0.020 10 22 72 5 HF64202100 h HSS DRILLS 12 0/-0.020 0.30 0/-0.020 12 26 83 5 HF64203120 h 16 0/-0.020 0.30 0/-0.020 16 32 92 5 HF64203160 h LFTA 20 0/-0.020 0.30 0/-0.020 20 38 104 5 HF64203200 h SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 426
