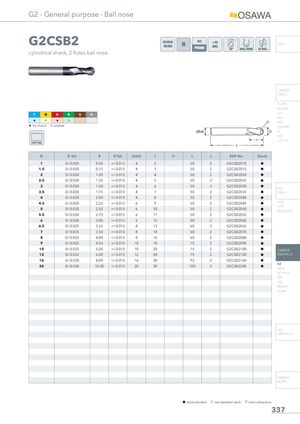

G2 - General purpose - Ball nose G2CSB2 OSAWA <45NORMHRC INFO cylindrical shank, 2 flutes ball nose CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H I H I R HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA COPYING D D Tol. R R Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.020 0.50 +/-0.015 4 2 50 2 G2CSB2010 h 1.5 0/-0.020 0.75 +/-0.015 4 3 50 2 G2CSB2015 h 2 0/-0.020 1.00 +/-0.015 4 4 50 2 G2CSB2020 h 2.5 0/-0.020 1.25 +/-0.015 4 5 50 2 G2CSB2025 h 3 0/-0.020 1.50 +/-0.015 4 6 50 2 G2CSB2030 h HSS 3.5 0/-0.020 1.75 +/-0.015 4 7 50 2 G2CSB2035 h DRILLS 4 0/-0.020 2.00 +/-0.015 4 8 50 2 G2CSB2040 h 4.5 0/-0.020 2.25 +/-0.015 6 9 50 2 G2CSB2045 h LFTA 5 0/-0.020 2.50 +/-0.015 6 10 50 2 G2CSB2050 h SUTAHSS-HSS/CO 5.5 0/-0.020 2.75 +/-0.015 6 11 50 2 G2CSB2055 h 6 0/-0.020 3.00 +/-0.015 6 12 50 2 G2CSB2060 h 6.5 0/-0.025 3.25 +/-0.015 8 13 60 2 G2CSB2065 h 7 0/-0.025 3.50 +/-0.015 8 14 60 2 G2CSB2070 h 8 0/-0.025 4.00 +/-0.015 8 16 60 2 G2CSB2080 h 9 0/-0.025 4.50 +/-0.015 10 18 75 2 G2CSB2090 h 10 0/-0.025 5.00 +/-0.015 10 20 75 2 G2CSB2100 h CARBIDE 12 0/-0.025 6.00 +/-0.015 12 24 75 2 G2CSB2120 h END-MILLS 16 0/-0.030 8.00 +/-0.015 16 30 92 2 G2CSB2160 h 20 0/-0.030 10.00 +/-0.015 20 30 100 2 G2CSB2200 h G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 337
