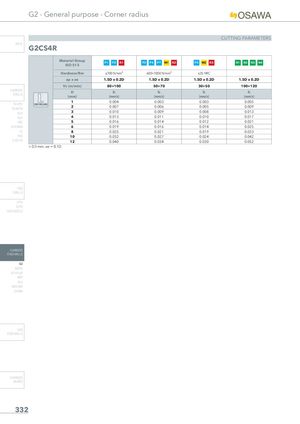

G2 - General purpose - Corner radius CUTTING PARAMETERS INFO G2CS4R Material GroupISO 513 P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.2D 1.5D x 0.2D 1.5D x 0.2D 1.5D x 0.2D Vc (m/min) 80÷100 50÷70 30÷50 100÷120 CARBIDEDRILLS D fz fz fz fz(mm)(mm/z)(mm/z)(mm/z)(mm/z) 1 0.004 0.003 0.003 0.005 PU-HPU SIDE MILLINGTA-4HTA 2 0.007 0.006 0.005 0.009 SUH 3 0.010 0.009 0.008 0.013 ALH 4 0.013 0.011 0.010 0.017 HRC 5 0.016 0.014 0.012 0.021 SUH MINI 6 0.019 0.016 0.014 0.025 HL 8 0.025 0.021 0.019 0.033 HSD 10 0.032 0.027 0.024 0.042 C-SD-TA 12 0.040 0.034 0.030 0.052 < D3 mm: ae = 0.1D HSS DRILLS LFTA SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 332
