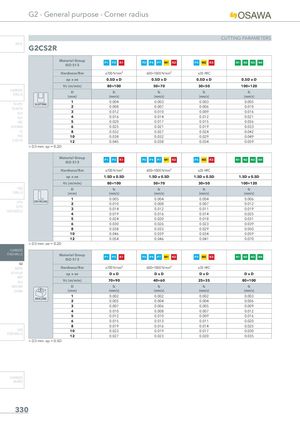

G2 - General purpose - Corner radius CUTTING PARAMETERS INFO G2CS2R Material GroupISO 513 P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 0.5D x D 0.5D x D 0.5D x D 0.5D x D Vc (m/min) 80÷100 50÷70 30÷50 100÷120 CARBIDEDRILLS D fz fz fz fz(mm)(mm/z)(mm/z)(mm/z)(mm/z) 1 0.004 0.003 0.003 0.005 PU-HPU SLOTTINGTA-4HTA 2 0.008 0.007 0.006 0.010 SUH 3 0.012 0.010 0.009 0.016 ALH 4 0.016 0.014 0.012 0.021 HRC 5 0.020 0.017 0.015 0.026 SUH MINI 6 0.025 0.021 0.019 0.033 HL 8 0.032 0.027 0.024 0.042 HSD 10 0.038 0.032 0.029 0.049 C-SD-TA 12 0.045 0.038 0.034 0.059 < D3 mm: ap = 0.2D Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 ISO 513 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.5D 1.5D x 0.5D 1.5D x 0.5D 1.5D x 0.5D Vc (m/min) 80÷100 50÷70 30÷50 100÷120 HSS D fz fz fz fz DRILLS (mm) (mm/z) (mm/z) (mm/z) (mm/z) 1 0.005 0.004 0.004 0.006 LFTA SIDE MILLING 2 0.010 0.008 0.007 0.012 SUTAHSS-HSS/CO 3 0.014 0.012 0.011 0.019 4 0.019 0.016 0.014 0.025 5 0.024 0.020 0.018 0.031 6 0.030 0.026 0.023 0.039 8 0.038 0.033 0.029 0.050 10 0.046 0.039 0.034 0.059 12 0.054 0.046 0.041 0.070 < D3 mm: ae = 0.2D CARBIDE END-MILLS Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 ISO 513 G2 MDTA Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC HF VH/UP ap x ae DxD DxD DxD DxD MEF ALU Vc (m/min) 70÷90 40÷60 25÷35 80÷100 MEX/MH D fz fz fz fz UH/MH (mm) (mm/z) (mm/z) (mm/z) (mm/z) 1 0.002 0.002 0.002 0.003 DRILLING 2 0.005 0.004 0.004 0.006 3 0.007 0.006 0.005 0.009 4 0.010 0.008 0.007 0.012 5 0.012 0.010 0.009 0.016 6 0.015 0.013 0.011 0.020 8 0.019 0.016 0.014 0.025 HSS 10 0.023 0.019 0.017 0.030 END-MILLS 12 0.027 0.023 0.020 0.035 < D3 mm: ap = 0.5D CARBIDE BURRS 330
