Общий каталог Osawa 2021 - страница 326

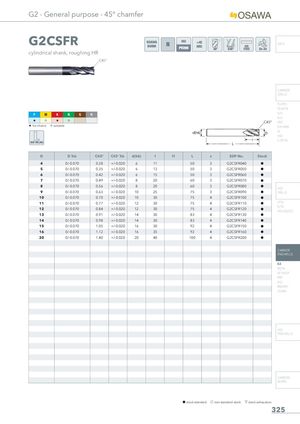

G2 - General purpose - 45° chamfer G2CSFR OSAWA <45NORMHRC INFO cylindrical shank, roughing HR C45° CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H I H I C45° HRC H 1st choice I suitable SUH MINI HL HSD SIDE MILLING C-SD-TA D D Tol. C45° C45° Tol. d(h6) l l1 L z EDP No. Stock 4 0/-0.070 0.28 +/-0.020 6 11 50 3 G2CSFR040 h 5 0/-0.070 0.35 +/-0.020 6 13 50 3 G2CSFR050 h 6 0/-0.070 0.42 +/-0.020 6 15 50 3 G2CSFR060 h 7 0/-0.070 0.49 +/-0.020 8 20 60 3 G2CSFR070 h 8 0/-0.070 0.56 +/-0.020 8 20 60 3 G2CSFR080 h HSS 9 0/-0.070 0.63 +/-0.020 10 25 75 3 G2CSFR090 h DRILLS 10 0/-0.070 0.70 +/-0.020 10 30 75 4 G2CSFR100 h 11 0/-0.070 0.77 +/-0.020 12 30 75 4 G2CSFR110 h LFTA 12 0/-0.070 0.84 +/-0.020 12 30 75 4 G2CSFR120 h SUTAHSS-HSS/CO 13 0/-0.070 0.91 +/-0.020 14 30 83 4 G2CSFR130 h 14 0/-0.070 0.98 +/-0.020 14 30 83 4 G2CSFR140 h 15 0/-0.070 1.05 +/-0.020 16 30 92 4 G2CSFR150 h 16 0/-0.070 1.12 +/-0.020 16 35 92 4 G2CSFR160 h 20 0/-0.070 1.40 +/-0.020 20 40 100 4 G2CSFR200 h CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 325
