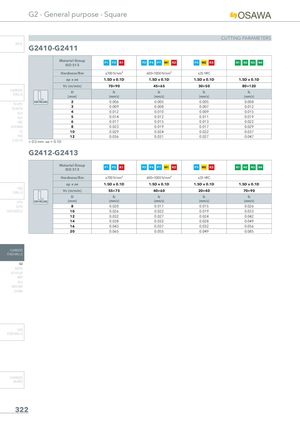

G2 - General purpose - Square CUTTING PARAMETERS INFO G2410-G2411 Material GroupISO 513 P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D Vc (m/min) 70÷90 45÷65 30÷50 80÷120 CARBIDEDRILLS D fz fz fz fz(mm)(mm/z)(mm/z)(mm/z)(mm/z) SIDE MILLING 2 0.006 0.005 0.005 0.008 PU-HPU TA-4HTA 3 0.009 0.008 0.007 0.012 SUH 4 0.012 0.010 0.009 0.015 ALH 5 0.014 0.012 0.011 0.019 HRC 6 0.017 0.015 0.013 0.022 SUH MINI 8 0.023 0.019 0.017 0.029 HL 10 0.029 0.024 0.022 0.037 HSD 12 0.036 0.031 0.027 0.047 C-SD-TA < D3 mm: ae = 0.1D G2412-G2413 Material Group P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 ISO 513 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D HSSDRILLS Vc (m/min) 55÷75 40÷60 20÷40 70÷90 D fz fz fz fz LFTA SIDE MILLING (mm) (mm/z) (mm/z) (mm/z) (mm/z) SUTA 8 0.020 0.017 0.015 0.026 HSS-HSS/CO 10 0.026 0.022 0.019 0.033 12 0.032 0.027 0.024 0.042 14 0.038 0.032 0.028 0.049 16 0.043 0.037 0.032 0.056 20 0.065 0.055 0.049 0.085 CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 322
