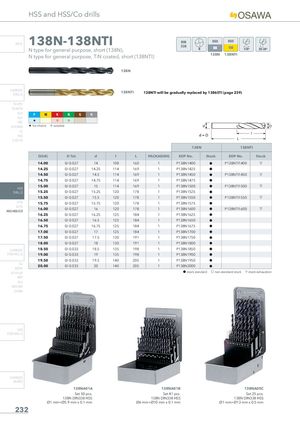

HSS and HSS/Co drills INFO 138N-138NTI DIN338 N type for general purpose, short (138N), N type for general purpose, TiN coated, short (138NTI) 138N 138NTI 138N CARBIDEDRILLS 138NTI 138NTI will be gradually replaced by 1386STI (page 239) PU-HPU TA-4HTA SUH P M K N S H ALH HRC H I I SUH MINI H 1st choice I suitable HL HSD C-SD-TA 138N 138NTI D(h8) D Tol. d l L PACKAGING EDP No. Stock EDP No. Stock 14.00 0/-0.027 14 108 160 1 P138N1400 h P138NTI1400 m 14.25 0/-0.027 14.25 114 169 1 P138N1425 h 14.50 0/-0.027 14.5 114 169 1 P138N1450 h P138NTI1450 m 14.75 0/-0.027 14.75 114 169 1 P138N1475 h 15.00 0/-0.027 15 114 169 1 P138N1500 h P138NTI1500 m HSS DRILLS 15.25 0/-0.027 15.25 120 178 1 P138N1525 h 15.50 0/-0.027 15.5 120 178 1 P138N1550 h P138NTI1550 m LFTA 15.75 0/-0.027 15.75 120 178 1 P138N1575 h SUTAHSS-HSS/CO16.00 0/-0.027 16 120 178 1 P138N1600 h P138NTI1600 m 16.25 0/-0.027 16.25 125 184 1 P138N1625 h 16.50 0/-0.027 16.5 125 184 1 P138N1650 h 16.75 0/-0.027 16.75 125 184 1 P138N1675 h 17.00 0/-0.027 17 125 184 1 P138N1700 h 17.50 0/-0.027 17.5 130 191 1 P138N1750 h 18.00 0/-0.027 18 130 191 1 P138N1800 h CARBIDE 18.50 0/-0.033 18.5 135 198 1 P138N1850 h END-MILLS 19.00 0/-0.033 19 135 198 1 P138N1900 h 19.50 0/-0.033 19.5 140 205 1 P138N1950 h G2 20.00 0/-0.033 20 140 205 1 P138N2000 h MDTA HF VH/UP h stock standard f non-standard stock m stock exhaustion MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 138NA01A 138NA01B 138NA05C Set 50 pcs. Set 41 pcs. Set 25 pcs. 138N DIN338 HSS 138N DIN338 HSS 138N DIN338 HSS Ø1 mm÷Ø5.9 mm x 0.1 mm Ø6 mm÷Ø10 mm x 0.1 mm Ø1 mm÷Ø13 mm x 0.5 mm 232
